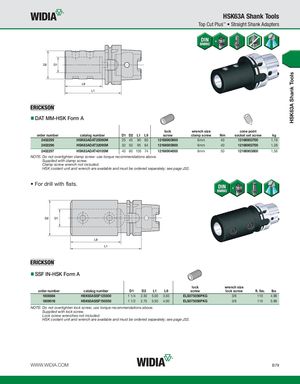

Top Cut Plus ™ Straight Shank Adapters
DAT MM-HSK Form A
lock wrench size cone point
| order number | catalog number | D1 D2 | L1 | L9 | screw | clamp screw | Nm | socket set screw | kg | |||
| 2402295 | HSK63ADAT25090M | 25 45 | 90 60 | 12166903900 | 6mm | 40 | 12166903700 | 1,19 | ||||
| 2402296 | HSK63ADAT32095M | 32 50 | 95 64 | 12166903900 | 6mm | 40 | 12166903700 | 1,28 | ||||
| 2402297 | HSK63ADAT40105M | 40 60 105 74 | 12166904000 | 8mm | 50 | 12166903800 | 1,56 |
NOTE: Do not overtighten clamp screw: use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
- For drill with flats.
SSF IN-HSK Form A
lock wrench size
| order number | catalog number | D1 | D2 | L1 | L9 | screw | lock screw | ft. lbs. | lbs | |||
| 1808884 | HSK63ASSF125500 | 1 1/4 | 2.50 | 5.00 | 3.50 | ELS075056PKG | 3/8 | 110 | 4.99 | |||
| 1809016 | HSK63ASSF150550 | 1 1/2 | 2.75 | 5.50 | 4.00 | ELS075056PKG | 3/8 | 110 | 5.99 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrenches not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
