Каталог Widia инструментальная оснастка - страница 409
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам

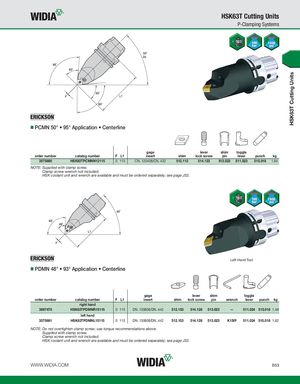

HSK63T Cutting Units HSK63T Cutting Units P-Clamping Systems PCMN 50° • 95° Application • Centerline gage lever shim toggle order number catalog number F L1 insert shim lock screw pin lever punch kg 3575690 HSK63TPCMNN12115 0 115 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 1,64 NOTE: Supplied with clamp screw. Clamp screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. Left-Hand Tool PDMN 48° • 93° Application • Centerline gage lever shim toggle order number catalog number F L1 insert shim lock screw pin wrench lever punch kg right hand 3897470 HSK63TPDMNR15115 0 115 DN..150608/DN..442 512.153 514.128 513.023 — 511.024 515.018 1,46 left hand 3575691 HSK63TPDMNL15115 0 115 DN..150608/DN..442 512.153 514.128 513.023 K15IP 511.024 515.018 1,62 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B53
