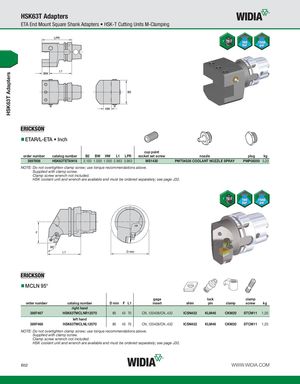

HSK63T Adapters HSK63T Adapters ETA End Mount Square Shank Adapters • HSK-T Cutting Units M-Clamping ETAR/L-ETA • Inch cup point order number catalog number B2 BW HW L1 LPR socket set screw nozzle plug kg 3897806 HSK63TETAN16 3.150 1.000 1.000 2.963 3.963 MS1430 PMT04526 COOLANT NOZZLE SPRAY PMP08350 3,20 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. MCLN 95° gage lock clamp order number catalog number D min F L1 insert shim pin clamp screw kg right hand 3897467 HSK63TMCLNR12070 80 45 70 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 1,20 left hand 3897468 HSK63TMCLNL12070 80 45 70 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 1,20 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B52 WWW.WIDIA.COM
