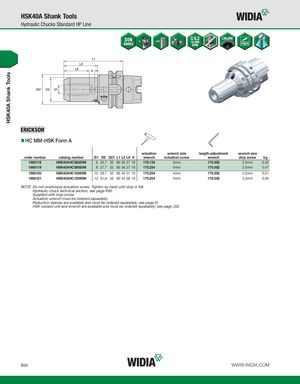

HSK40A Shank Tools HSK40A Shank Tools Hydraulic Chucks Standard HP Line HC MM-HSK Form A actuation wrench size length-adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L9 V wrench actuation screw wrench stop screw kg 1960118 HSK40AHC06080M 6 25,7 32 80 35 27 10 170.135 5mm 170.002 2,5mm 0,45 1960119 HSK40AHC08080M 8 27,7 32 80 36 27 10 170.254 4mm 170.002 2,5mm 0,47 1960120 HSK40AHC10085M 10 29,7 32 85 40 31 10 170.254 4mm 170.002 2,5mm 0,51 1960121 HSK40AHC12090M 12 31,6 32 90 43 36 10 170.254 4mm 170.002 2,5mm 0,55 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B32 WWW.WIDIA.COM
