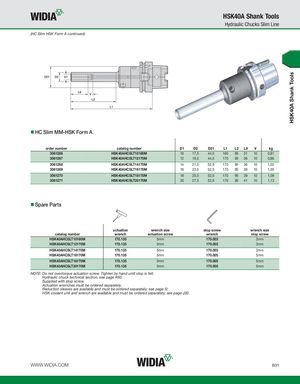

HSK40A Shank Tools HSK40A Shank Tools Hydraulic Chucks Slim Line (HC Slim HSK Form A continued) HC Slim MM-HSK Form A order number catalog number D1 D2 D21 L1 L2 L9 V kg 3061266 HSK40AHCSLT10160M 10 17,5 44,5 160 85 31 10 0,81 3061267 HSK40AHCSLT12170M 12 19,5 44,5 170 95 36 10 0,86 3061268 HSK40AHCSLT14170M 14 21,5 52,5 170 95 36 10 1,02 3061269 HSK40AHCSLT16170M 16 23,5 52,5 170 95 39 10 1,05 3061270 HSK40AHCSLT18170M 18 25,5 52,5 170 95 39 10 1,09 3061271 HSK40AHCSLT20170M 20 27,5 52,5 170 95 41 10 1,13 Spare Parts actuation wrench size stop screw wrench size catalog number wrench actuation screw wrench stop screw HSK40AHCSLT10160M 170.135 5mm 170.003 3mm HSK40AHCSLT12170M 170.135 5mm 170.003 3mm HSK40AHCSLT14170M 170.135 5mm 170.003 3mm HSK40AHCSLT16170M 170.135 5mm 170.005 5mm HSK40AHCSLT18170M 170.135 5mm 170.005 5mm HSK40AHCSLT20170M 170.135 5mm 170.005 5mm NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrenches must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B31
