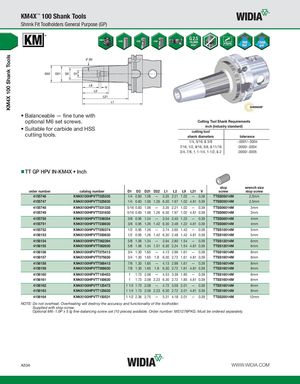

KM4X 100 Shank Tools KM4X™ 100 Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. Cutting Tool Shank Requirements • Suitable for carbide and HSScutting tools. inch (industry standard)cutting toolshank diameterstolerance 1/4, 5/16, & 3/8 -.0001/-.0004 7/16, 1/2, 9/16, 5/8, & 11/16 .0000/-.0004 3/4, 7/8, 1, 1-1/4, 1-1/2, & 2 .0000/-.0005 TT GP HPV IN-KM4X • Inch stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V screw stop screw 4155746 KM4X100HPVTT025335 1/4 0.83 1.06 — 3.35 2.21 1.02 — 0.39 TTSS05014M 2,5mm 4155747 KM4X100HPVTT025630 1/4 0.83 1.06 1.26 6.30 1.97 1.02 4.81 0.39 TTSS05014M 2,5mm 4155748 KM4X100HPVTT031335 5/16 0.83 1.06 — 3.35 2.21 1.02 — 0.39 TTSS06014M 3mm 4155749 KM4X100HPVTT031630 5/16 0.83 1.06 1.26 6.30 1.97 1.02 4.81 0.39 TTSS06014M 3mm 4155750 KM4X100HPVTT038354 3/8 0.95 1.24 — 3.54 2.40 1.22 — 0.39 TTSS08014M 4mm 4155751 KM4X100HPVTT038630 3/8 0.95 1.26 1.42 6.30 2.48 1.22 4.81 0.39 TTSS08014M 4mm 4155752 KM4X100HPVTT050374 1/2 0.95 1.26 — 3.74 2.60 1.42 — 0.39 TTSS10014M 5mm 4156153 KM4X100HPVTT050630 1/2 0.95 1.26 1.42 6.30 2.48 1.42 4.81 0.39 TTSS10014M 5mm 4156154 KM4X100HPVTT062394 5/8 1.06 1.34 — 3.94 2.80 1.54 — 0.39 TTSS12014M 6mm 4156155 KM4X100HPVTT062630 5/8 1.06 1.34 1.51 6.30 2.24 1.54 4.81 0.39 TTSS12014M 6mm 4156156 KM4X100HPVTT075413 3/4 1.30 1.65 — 4.13 2.99 1.61 — 0.39 TTSS16014M 8mm 4156157 KM4X100HPVTT075630 3/4 1.30 1.65 1.8 6.30 2.72 1.61 4.81 0.39 TTSS16014M 8mm 4156158 KM4X100HPVTT088413 7/8 1.30 1.65 — 4.13 2.99 1.61 — 0.39 TTSS16014M 8mm 4156159 KM4X100HPVTT088630 7/8 1.30 1.65 1.8 6.30 2.72 1.61 4.81 0.39 TTSS16014M 8mm 4156160 KM4X100HPVTT100453 1 1.73 2.08 — 4.53 3.39 1.85 — 0.39 TTSS16014M 8mm 4156161 KM4X100HPVTT100630 1 1.73 2.08 2.23 6.30 2.72 1.85 4.81 0.39 TTSS16014M 8mm 4156162 KM4X100HPVTT125472 1 1/4 1.73 2.08 — 4.72 3.59 2.01 — 0.39 TTSS16014M 8mm 4156163 KM4X100HPVTT125630 1 1/4 1.73 2.08 2.23 6.30 2.72 2.01 4.81 0.39 TTSS16014M 8mm 4156164 KM4X100HPVTT150531 1 1/2 2.36 2.75 — 5.31 4.18 2.01 — 0.39 TTSS20014M 10mm NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Supplied with stop screw. Optional M6~1.0P x 5 lg fine-balancing screw set (10 pieces) available. Order number: MS1276PKG. Must be ordered separately. A334 WWW.WIDIA.COM
