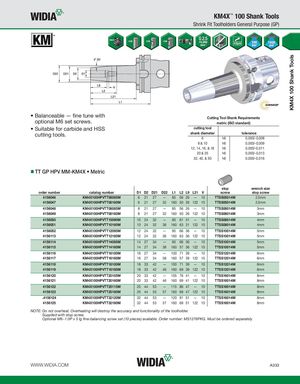

KM4X 100 Shank Tools KM4X™ 100 Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with Cutting Tool Shank Requirements optional M6 set screws. metric (ISO standard) • Suitable for carbide and HSS cutting tool cutting tools. shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32, 40, & 50 h6 0,000/-0,016 TT GP HPV MM-KM4X • Metric stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V screw stop screw 4156046 KM4X100HPVTT06085M 6 21 27 — 85 56 26 — 10 TTSS05014M 2,5mm 4156047 KM4X100HPVTT06160M 6 21 27 32 160 50 26 122 10 TTSS05014M 2,5mm 4156048 KM4X100HPVTT08085M 8 21 27 — 85 56 26 — 10 TTSS06014M 3mm 4156049 KM4X100HPVTT08160M 8 21 27 32 160 50 26 122 10 TTSS06014M 3mm 4156050 KM4X100HPVTT10090M 10 24 32 — 90 61 31 — 10 TTSS08014M 4mm 4156051 KM4X100HPVTT10160M 10 24 32 36 160 63 31 122 10 TTSS08014M 4mm 4156052 KM4X100HPVTT12095M 12 24 32 — 95 66 36 — 10 TTSS10014M 5mm 4156113 KM4X100HPVTT12160M 12 24 32 36 160 63 36 122 10 TTSS10014M 5mm 4156114 KM4X100HPVTT14095M 14 27 34 — 95 66 36 — 10 TTSS10014M 5mm 4156115 KM4X100HPVTT14160M 14 27 34 38 160 57 36 122 10 TTSS10014M 5mm 4156116 KM4X100HPVTT16100M 16 27 34 — 100 71 39 — 10 TTSS12014M 6mm 4156117 KM4X100HPVTT16160M 16 27 34 38 160 57 39 122 10 TTSS12014M 6mm 4156118 KM4X100HPVTT18100M 18 33 42 — 100 71 39 — 10 TTSS12014M 6mm 4156119 KM4X100HPVTT18160M 18 33 42 46 160 69 39 122 10 TTSS12014M 6mm 4156120 KM4X100HPVTT20105M 20 33 42 — 105 76 41 — 10 TTSS16014M 8mm 4156121 KM4X100HPVTT20160M 20 33 42 46 160 69 41 122 10 TTSS16014M 8mm 4156122 KM4X100HPVTT25115M 25 44 53 — 115 86 47 — 10 TTSS16014M 8mm 4156123 KM4X100HPVTT25160M 25 44 53 57 160 69 47 122 10 TTSS16014M 8mm .4156124 KM4X100HPVTT32120M 32 44 53 — 120 91 51 — 10 TTSS16014M 8mm 4156125 KM4X100HPVTT32160M 32 44 53 57 160 69 51 122 10 TTSS16014M 8mm NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Supplied with stop screw. Optional M6~1.0P x 5 lg fine-balancing screw set (10 pieces) available. Order number: MS1276PKG. Must be ordered separately. WWW.WIDIA.COM A333
