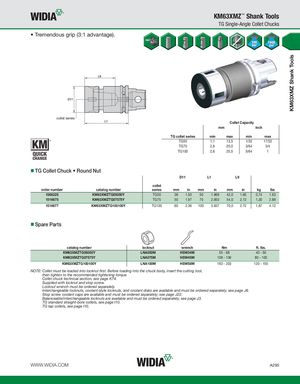

KM63XMZ Shank Tools KM63XMZ™ Shank Tools TG Single-Angle Collet Chucks • Tremendous grip (3:1 advantage). collet series Collet Capacity mm inch TG collet series min max min max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG Collet Chuck • Round Nut D11 L1 L9 collet order number catalog number series mm in mm in mm in kg lbs 1566225 KM63XMZTG05050Y TG50 38 1.50 50 1.969 42,0 1.65 0,74 1.63 1516675 KM63XMZTG07575Y TG75 50 1.97 75 2.953 54,0 2.13 1,30 2.88 1516677 KM63XMZTG100100Y TG100 60 2.36 100 3.937 70,0 2.72 1,87 4.12 Spare Parts catalog number locknut wrench Nm ft. lbs. KM63XMZTG05050Y LNA050M HSW34M 55 - 68 40 - 50 KM63XMZTG07575Y LNA075M HSW45M 108 - 136 80 - 100 KM63XMZTG100100Y LNA100M HSW58M 163 - 203 120 - 150 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. WWW.WIDIA.COM A295
