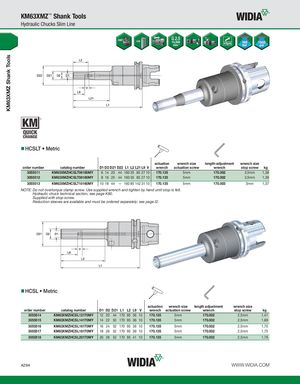

KM63XMZ Shank Tools KM63XMZ™ Shank Tools Hydraulic Chucks Slim Line HCSLT • Metric actuation wrench size length-adjustment wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V wrench actuation screw wrench stop screw kg 3055511 KM63XMZHCSLT06160MY 6 14 20 44 160 35 85 27 10 170.135 5mm 170.002 2,5mm 1,38 3055512 KM63XMZHCSLT08160MY 8 16 20 44 160 35 85 27 10 170.135 5mm 170.002 2,5mm 1,39 3055513 KM63XMZHCSLT10160MY 10 18 44 — 160 85 142 31 10 170.135 5mm 170.003 3mm 1,37 NOTE: Do not overtorque clamp screw. Use supplied wrench and tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Reduction sleeves are available and must be ordered separately; see page I2. HCSL • Metric actuation wrench size length adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L9 V wrench actuation screw wrench stop screw kg 3055514 KM63XMZHCSL12170MY 12 20 44 170 95 36 10 170.135 5mm 170.002 2,5mm 1,41 3055515 KM63XMZHCSL14170MY 14 22 52 170 95 36 10 170.135 5mm 170.002 2,5mm 1,69 3055516 KM63XMZHCSL16170MY 16 24 52 170 95 39 10 170.135 5mm 170.002 2,5mm 1,70 3055517 KM63XMZHCSL18170MY 18 26 52 170 95 39 10 170.135 5mm 170.002 2,5mm 1,75 3055518 KM63XMZHCSL20170MY 20 28 52 170 95 41 10 170.135 5mm 170.002 2,5mm 1,78 A294 WWW.WIDIA.COM
