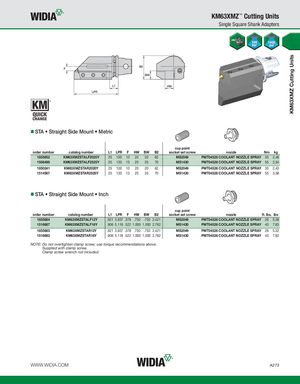

KM63XMZ Cutting Units KM63XMZ™ Cutting Units Single Square Shank Adapters STA • Straight Side Mount • Metric cup point order number catalog number L1 LPR F HW BW B2 socket set screw nozzle Nm kg 1855652 KM63XMZSTALF2020Y 25 100 10 20 20 62 MS2049 PMT04526 COOLANT NOZZLE SPRAY 35 2,46 1506498 KM63XMZSTALF2525Y 25 130 13 25 25 70 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 3,54 1850241 KM63XMZSTAR2020Y 25 100 10 20 20 62 MS2049 PMT04526 COOLANT NOZZLE SPRAY 35 2,43 1514567 KM63XMZSTAR2525Y 25 130 13 25 25 70 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 3,58 STA • Straight Side Mount • Inch cup point order number catalog number L1 LPR F HW BW B2 socket set screw nozzle ft. lbs. lbs 1855684 KM63XMZSTALF12Y .921 3.937 .378 .750 .750 2.421 MS2049 PMT04526 COOLANT NOZZLE SPRAY 26 5.38 1516687 KM63XMZSTALF16Y .906 5.118 .522 1.000 1.000 2.762 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 7.83 1855683 KM63XMZSTAR12Y .921 3.937 .378 .750 .750 2.421 MS2049 PMT04526 COOLANT NOZZLE SPRAY 26 5.32 1516683 KM63XMZSTAR16Y .906 5.118 .522 1.000 1.000 2.762 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 7.92 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. WWW.WIDIA.COM A273
