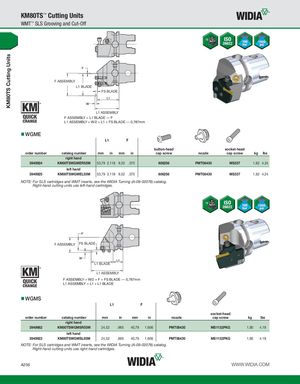

KM80TS Cutting Units KM80TS™ Cutting Units WMT™ SLS Grooving and Cut-Off F ASSEMBLY L1 BLADE FS BLADE L1 ASSEMBLY F ASSEMBLY = L1 BLADE — F L1 ASSEMBLY = W/2 + L1 + FS BLADE — 0,787mm WGME L1 F button-head socket-head order number catalog number mm in mm in cap screw nozzle cap screw kg lbs right hand 3949924 KM80TSWGMER55M 53,79 2.118 9,52 .375 606256 PMT08430 MS337 1,92 4.24 left hand 3949925 KM80TSWGMEL55M 53,79 2.118 9,52 .375 606256 PMT08430 MS337 1,92 4.24 NOTE: For SLS cartridges and WMT inserts, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use left-hand cartridges. F ASSEMBLY FS BLADE L1 BLADE L1 ASSEMBLY F ASSEMBLY = W/2 + F + FS BLADE — 0,787mm L1 ASSEMBLY = L1 + L1 BLADE WGMS L1 F socket-head order number catalog number mm in mm in nozzle cap screw kg lbs right hand 3949662 KM80TSWGMSR55M 24,52 .965 40,79 1.606 PMT08430 MS1132PKG 1,90 4.19 left hand 3949923 KM80TSWGMSL55M 24,52 .965 40,79 1.606 PMT08430 MS1132PKG 1,90 4.19 NOTE: For SLS cartridges and WMT inserts, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use right-hand cartridges. A256 WWW.WIDIA.COM
