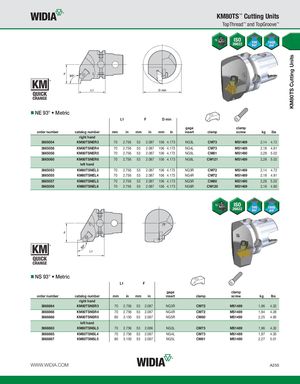

KM80TS Cutting Units KM80TS™ Cutting Units TopThread™ and TopGroove™ NE 93° • Metric L1 F D min gage clamp order number catalog number mm in mm in mm in insert clamp screw kg lbs right hand 3665054 KM80TSNER3 70 2.756 53 2.087 106 4.173 NG3L CM73 MS1489 2,14 4.72 3665056 KM80TSNER4 70 2.756 53 2.087 106 4.173 NG4L CM73 MS1489 2,18 4.81 3665058 KM80TSNER5 70 2.756 53 2.087 106 4.173 NG5L CM81 MS1490 2,28 5.02 3665060 KM80TSNER6 70 2.756 53 2.087 106 4.173 NG6L CM121 MS1489 2,28 5.02 left hand 3665053 KM80TSNEL3 70 2.756 53 2.087 106 4.173 NG3R CM72 MS1489 2,14 4.72 3665055 KM80TSNEL4 70 2.756 53 2.087 106 4.173 NG4R CM72 MS1489 2,18 4.81 3665057 KM80TSNEL5 70 2.756 53 2.087 106 4.173 NG5R CM80 MS1490 2,28 5.02 3665059 KM80TSNEL6 70 2.756 53 2.087 106 4.173 NG6R CM120 MS1489 2,18 4.80 NS 93° • Metric L1 F gage clamp order number catalog number mm in mm in insert clamp screw kg lbs right hand 3668864 KM80TSNSR3 70 2.756 53 2.087 NG3R CM72 MS1489 1,96 4.32 3668866 KM80TSNSR4 70 2.756 53 2.087 NG4R CM72 MS1489 1,94 4.28 3668868 KM80TSNSR5 80 3.150 53 2.087 NG5R CM80 MS1490 2,25 4.95 left hand 3668863 KM80TSNSL3 70 2.756 53 2.086 NG3L CM73 MS1489 1,96 4.32 3668865 KM80TSNSL4 70 2.756 53 2.087 NG4L CM73 MS1489 1,97 4.35 3668867 KM80TSNSL5 80 3.150 53 2.087 NG5L CM81 MS1490 2,27 5.01 WWW.WIDIA.COM A255
