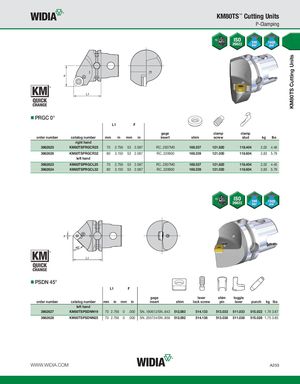

KM80TS Cutting Units KM80TS™ Cutting Units P-Clamping PRGC 0° L1 F gage clamp clamp order number catalog number mm in mm in insert shim screw stud kg lbs right hand 3662625 KM80TSPRGCR25 70 2.756 53 2.087 RC..2507M0 169.337 121.820 118.404 2,02 4.46 3662626 KM80TSPRGCR32 80 3.150 53 2.087 RC..320900 169.339 121.030 118.604 2,63 5.79 left hand 3662623 KM80TSPRGCL25 70 2.756 53 2.087 RC..2507M0 169.337 121.820 118.404 2,02 4.45 3662624 KM80TSPRGCL32 80 3.150 53 2.087 RC..320900 169.339 121.030 118.604 2,63 5.79 PSDN 45° L1 F gage lever shim toggle order number catalog number mm in mm in insert shim lock screw pin lever punch kg lbs left hand 3662627 KM80TSPSDNN19 70 2.756 0 .000 SN..190612/SN..643 512.083 514.133 513.033 511.033 515.022 1,76 3.87 3662628 KM80TSPSDNN25 70 2.756 0 .000 SN..250724/SN..856 512.092 514.138 513.038 511.038 515.028 1,75 3.85 WWW.WIDIA.COM A253
