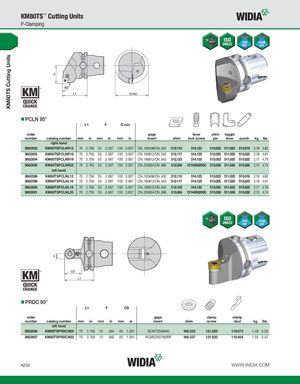

KM80TS Cutting Units KM80TS™ Cutting Units P-Clamping PCLN 95° L1 F D min order gage lever shim toggle number catalog number mm in mm in mm in insert shim lock screw pin lever punch kg lbs right hand 3662602 KM80TSPCLNR12 70 2.756 53 2.087 100 3.937 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 2,19 4.82 3662603 KM80TSPCLNR16 70 2.756 53 2.087 100 3.937 CN..160612/CN..543 512.117 514.125 513.025 511.025 515.022 2,18 4.81 3662604 KM80TSPCLNR19 70 2.756 53 2.087 100 3.937 CN..190612/CN..643 512.123 514.133 513.033 511.033 515.022 2,17 4.79 3662605 KM80TSPCLNR25 70 2.756 53 2.087 100 3.937 CN..250924/CN..866 512.024 12148562500 513.038 511.038 515.028 2,15 4.74 left hand 3662598 KM80TSPCLNL12 70 2.756 53 2.087 100 3.937 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 2,19 4.82 3662599 KM80TSPCLNL16 70 2.756 53 2.087 100 3.937 CN..160612/CN..543 512.117 514.125 513.025 511.025 515.022 2,18 4.81 3662600 KM80TSPCLNL19 70 2.756 53 2.087 100 3.937 CN..190612/CN..643 512.123 514.133 513.033 511.033 515.022 2,17 4.79 3662601 KM80TSPCLNL25 70 2.756 53 2.087 100 3.937 CN..250924/CN..866 512.024 12148562500 513.038 511.038 515.028 2,15 4.74 PRDC 90° L1 F CD order gage clamp clamp number catalog number mm in mm in mm in insert shim screw stud kg lbs left hand 3662606 KM80TSPRDCN20 70 2.756 10 .394 40 1.581 RCMT2006M0 169.333 121.820 119.073 1,48 3.26 3662607 KM80TSPRDCN25 70 2.756 13 .492 40 1.581 RCMX2507M0RP 169.337 121.820 118.404 1,55 3.42 A252 WWW.WIDIA.COM
