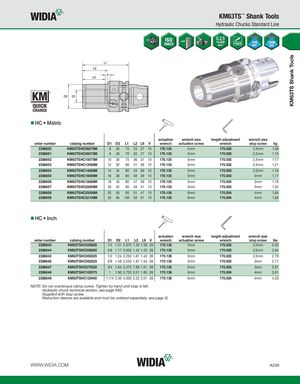

KM63TS Shank Tools KM63TS™ Shank Tools Hydraulic Chucks Standard Line HC • Metric actuation wrench size length adjustment wrench size order number catalog number D1 D2 L1 L2 L9 V wrench actuation screw wrench stop screw kg 2388650 KM63TSHC06070M 6 26 70 33 27 10 170.135 5mm 170.002 2,5mm 1,08 2388651 KM63TSHC08070M 8 28 70 33 27 10 170.135 5mm 170.002 2,5mm 1,10 2388652 KM63TSHC10075M 10 30 75 36 31 10 170.135 5mm 170.002 2,5mm 1,17 2388653 KM63TSHC12080M 12 32 80 41 36 10 170.135 5mm 170.002 2,5mm 1,21 2388654 KM63TSHC14080M 14 34 80 43 36 10 170.135 5mm 170.003 2,5mm 1,18 2388655 KM63TSHC16080M 16 38 80 48 39 10 170.135 5mm 170.003 3mm 1,17 2388656 KM63TSHC18080M 18 40 80 47 39 10 170.135 5mm 170.003 3mm 1,19 2388657 KM63TSHC20085M 20 42 85 48 41 10 170.135 5mm 170.003 3mm 1,32 2388658 KM63TSHC25095M 25 50 95 51 47 10 170.136 6mm 170.004 4mm 1,64 2388659 KM63TSHC32100M 32 60 100 59 51 10 170.136 6mm 170.004 4mm 1,92 HC • Inch actuation wrench size length adjustment wrench size order number catalog number D1 D2 L1 L2 L9 V wrench actuation screw wrench stop screw lbs 2388643 KM63TSHC025288 1/4 1.01 2.875 1.30 1.06 .39 170.135 5mm 170.002 2,5mm 2.53 2388644 KM63TSHC038300 3/8 1.17 3.000 1.42 1.22 .39 170.135 5mm 170.002 2,5mm 2.64 2388645 KM63TSHC050325 1/2 1.24 3.250 1.61 1.42 .39 170.135 5mm 170.002 2,5mm 2.79 2388646 KM63TSHC062325 5/8 1.48 3.250 1.87 1.54 .39 170.135 5mm 170.003 3mm 2.71 2388647 KM63TSHC075338 3/4 1.64 3.375 1.89 1.61 .39 170.135 5mm 170.003 3mm 2.97 2388648 KM63TSHC100375 1 1.96 3.750 2.01 1.85 .39 170.136 6mm 170.004 4mm 3.61 2388649 KM63TSHC125400 1 1/4 2.35 4.000 2.32 2.01 .39 170.136 6mm 170.004 4mm 4.33 NOTE: Do not overtorque clamp screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Reduction sleeves are available and must be ordered separately; see page I2. WWW.WIDIA.COM A229
