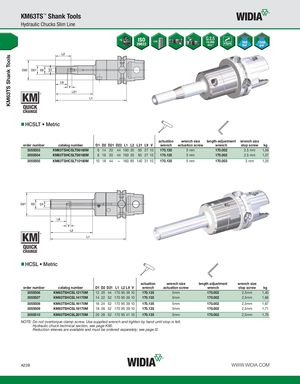

KM63TS Shank Tools KM63TS™ Shank Tools Hydraulic Chucks Slim Line HCSLT • Metric actuation wrench size length-adjustment wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V wrench actuation screw wrench stop screw kg 3055503 KM63TSHCSLT06160M 6 14 20 44 160 35 85 27 10 170.135 5 mm 170.002 2.5 mm 1,36 3055504 KM63TSHCSLT08160M 8 16 20 44 160 35 85 27 10 170.135 5 mm 170.002 2.5 mm 1,37 3055505 KM63TSHCSLT10160M 10 18 44 — 160 85 140 31 10 170.135 5 mm 170.003 3 mm 1,35 HCSL • Metric actuation wrench size length adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L9 V wrench actuation screw wrench stop screw kg 3055506 KM63TSHCSL12170M 12 20 44 170 95 36 10 170.135 5mm 170.002 2,5mm 1,40 3055507 KM63TSHCSL14170M 14 22 52 170 95 36 10 170.135 5mm 170.002 2,5mm 1,66 3055508 KM63TSHCSL16170M 16 24 52 170 95 39 10 170.135 5mm 170.002 2,5mm 1,67 3055509 KM63TSHCSL18170M 18 26 52 170 95 39 10 170.135 5mm 170.002 2,5mm 1,71 3055510 KM63TSHCSL20170M 20 28 52 170 95 41 10 170.135 5mm 170.002 2,5mm 1,75 NOTE: Do not overtorque clamp screw. Use supplied wrench and tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Reduction sleeves are available and must be ordered separately; see page I2. A228 WWW.WIDIA.COM
