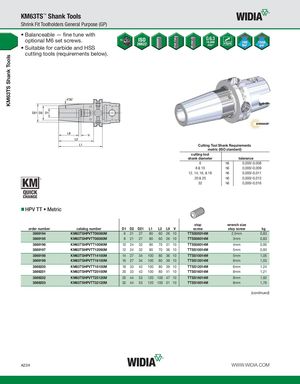

KM63TS Shank Tools KM63TS™ Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 HPV TT • Metric stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3869194 KM63TSHPVTT06080M 6 21 27 80 60 26 10 TTSS05014M 2,5mm 0,83 3869195 KM63TSHPVTT08080M 8 21 27 80 60 26 10 TTSS06014M 3mm 0,83 3869196 KM63TSHPVTT10090M 10 24 32 90 70 31 10 TTSS08014M 4mm 0,95 3869197 KM63TSHPVTT12090M 12 24 32 90 70 36 10 TTSS10014M 5mm 0,93 3869198 KM63TSHPVTT14100M 14 27 34 100 80 36 10 TTSS10014M 5mm 1,05 3869199 KM63TSHPVTT16100M 16 27 34 100 80 39 10 TTSS12014M 6mm 1,03 3869200 KM63TSHPVTT18100M 18 33 42 100 80 39 10 TTSS12014M 6mm 1,24 3869201 KM63TSHPVTT20100M 20 33 42 100 80 41 10 TTSS16014M 8mm 1,21 3869202 KM63TSHPVTT25120M 25 44 53 120 100 47 10 TTSS16014M 8mm 1,92 3869203 KM63TSHPVTT32120M 32 44 53 120 100 51 10 TTSS16014M 8mm 1,76 (continued) A224 WWW.WIDIA.COM
