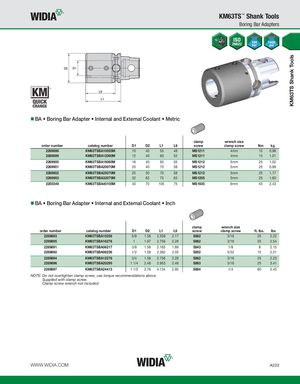

KM63TS Shank Tools KM63TS™ Shank Tools Boring Bar Adapters BA • Boring Bar Adapter • Internal and External Coolant • Metric clamp wrench size order number catalog number D1 D2 L1 L9 screw clamp screw Nm kg 2269898 KM63TSBA10055M 10 40 55 48 MS1211 4mm 15 0,98 2269899 KM63TSBA12060M 12 40 60 52 MS1211 4mm 15 1,01 2269900 KM63TSBA16065M 16 40 65 55 MS1212 5mm 25 1,02 2269901 KM63TSBA20070M 20 40 70 58 MS1212 5mm 25 0,99 2269902 KM63TSBA25070M 25 50 70 58 MS1212 5mm 25 1,17 2269903 KM63TSBA32075M 32 63 75 63 MS1205 5mm 25 1,60 2255549 KM63TSBA40105M 40 70 105 75 MS1935 6mm 45 2,43 BA • Boring Bar Adapter • Internal and External Coolant • Inch clamp wrench size order number catalog number D1 D2 L1 L9 screw clamp screw ft. lbs. lbs 2269893 KM63TSBA10256 5/8 1.58 2.559 2.17 S862 3/16 25 2.22 2269895 KM63TSBA16276 1 1.97 2.756 2.28 S862 3/16 25 2.54 2269891 KM63TSBA06217 3/8 1.58 2.165 1.89 S843 1/8 8 2.15 2269892 KM63TSBA08236 1/2 1.58 2.362 2.05 S852 5/32 15 2.21 2269894 KM63TSBA12276 3/4 1.58 2.756 2.28 S862 3/16 25 2.23 2269896 KM63TSBA20295 1 1/4 2.48 2.953 2.48 S863 3/16 25 3.41 2269897 KM63TSBA24413 1 1/2 2.76 4.134 2.95 S884 1/4 60 5.45 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. WWW.WIDIA.COM A223
