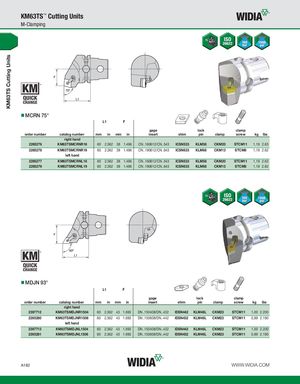

KM63TS Cutting Units KM63TS™ Cutting Units M-Clamping MCRN 75° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 2265276 KM63TSMCRNR16 60 2.362 38 1.496 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 1,19 2.63 2265278 KM63TSMCRNR19 60 2.362 38 1.496 CN..190612/CN..643 ICSN633 KLM68 CKM13 STCM8 1,19 2.62 left hand 2265277 KM63TSMCRNL16 60 2.362 38 1.496 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 1,19 2.63 2265279 KM63TSMCRNL19 60 2.362 38 1.496 CN..190612/CN..643 ICSN633 KLM68 CKM13 STCM8 1,19 2.62 MDJN 93° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 2397712 KM63TSMDJNR1504 60 2.362 43 1.693 DN..150408/DN..432 IDSN442 KLM46L CKM23 STCM11 1,00 2.200 2265280 KM63TSMDJNR1506 60 2.362 43 1.693 DN..150608/DN..442 IDSN432 KLM46L CKM23 STCM11 0,99 2.190 left hand 2397713 KM63TSMDJNL1504 60 2.362 43 1.693 DN..150408/DN..432 IDSN442 KLM46L CKM23 STCM11 1,00 2.200 2265281 KM63TSMDJNL1506 60 2.362 43 1.693 DN..150608/DN..442 IDSN432 KLM46L CKM23 STCM11 0,99 2.190 A182 WWW.WIDIA.COM
