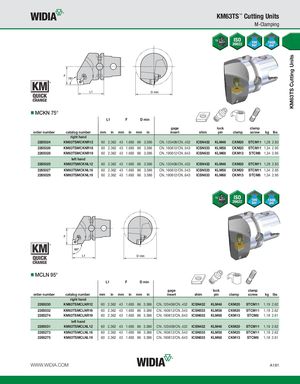

KM63TS Cutting Units KM63TS™ Cutting Units M-Clamping MCKN 75° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2265024 KM63TSMCKNR12 60 2.362 43 1.693 86 3.386 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 1,28 2.83 2265026 KM63TSMCKNR16 60 2.362 43 1.693 86 3.386 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 1,34 2.95 2265028 KM63TSMCKNR19 60 2.362 43 1.693 86 3.386 CN..190612/CN..643 ICSN633 KLM68 CKM13 STCM8 1,34 2.95 left hand 2265025 KM63TSMCKNL12 60 2.362 43 1.693 86 3.386 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 1,28 2.83 2265027 KM63TSMCKNL16 60 2.362 43 1.693 86 3.386 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 1,34 2.95 2265029 KM63TSMCKNL19 60 2.362 43 1.693 86 3.386 CN..190612/CN..643 ICSN633 KLM68 CKM13 STCM8 1,34 2.95 MCLN 95° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2265030 KM63TSMCLNR12 60 2.362 43 1.693 86 3.386 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 1,19 2.62 2265032 KM63TSMCLNR16 60 2.362 43 1.693 86 3.386 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 1,19 2.62 2265274 KM63TSMCLNR19 60 2.362 43 1.693 86 3.386 CN..190612/CN..643 ICSN633 KLM68 CKM13 STCM8 1,18 2.61 left hand 2265031 KM63TSMCLNL12 60 2.362 43 1.693 86 3.386 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 1,19 2.62 2265273 KM63TSMCLNL16 60 2.362 43 1.693 86 3.386 CN..160612/CN..543 ICSN533 KLM58 CKM20 STCM11 1,19 2.62 2265275 KM63TSMCLNL19 60 2.362 43 1.693 86 3.386 CN..190612/CN..643 ICSN633 KLM68 CKM13 STCM8 1,18 2.61 WWW.WIDIA.COM A181
