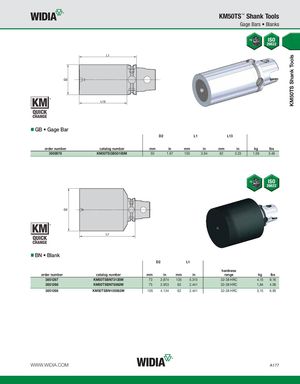

KM50TS Shank Tools KM50TS™ Shank Tools Gage Bars • Blanks GB • Gage Bar D2 L1 L13 order number catalog number mm in mm in mm in kg lbs 3959978 KM50TSGB50100M 50 1.97 100 3.94 82 3.23 1,59 3.49 BN • Blank D2 L1 hardness order number catalog number mm in mm in range kg lbs 3851267 KM50TSBN73135M 73 2.874 135 5.315 32-38 HRC 4,15 9.16 3851268 KM50TSBN75062M 75 2.953 62 2.441 32-38 HRC 1,84 4.06 3851266 KM50TSBN105062M 105 4.134 62 2.441 32-38 HRC 3,15 6.95 WWW.WIDIA.COM A177
