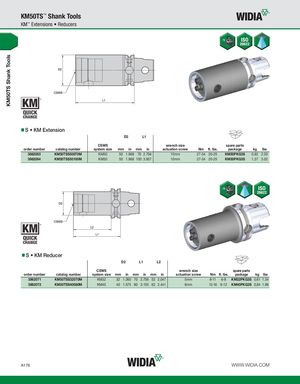

KM50TS Shank Tools KM50TS™ Shank Tools KM™ Extensions • Reducers S • KM Extension D2 L1 CSWS wrench size spare parts order number catalog number system size mm in mm in actuation screw Nm ft. lbs. package kg lbs 3862083 KM50TSS50070M KM50 50 1.969 70 2.756 10mm 27-34 20-25 KM50PKG3S 0,92 2.03 3862084 KM50TSS50100M KM50 50 1.969 100 3.937 10mm 27-34 20-25 KM50PKG3S 1,37 3.02 S • KM Reducer D2 L1 L2 CSWS wrench size spare parts order number catalog number system size mm in mm in mm in actuation screw Nm ft. lbs. package kg lbs 3862071 KM50TSS32070M KM32 32 1.260 70 2.756 52 2.047 5mm 8-11 6-8 KM32PKG3S 0,61 1.34 3862072 KM50TSS40080M KM40 40 1.575 80 3.150 62 2.441 6mm 12-16 9-12 KM40PKG3S 0,84 1.86 A176 WWW.WIDIA.COM
