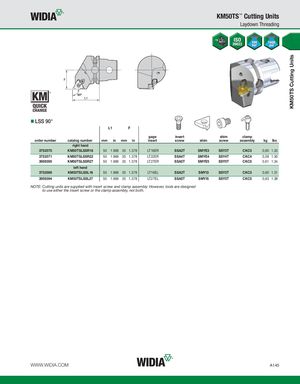

KM50TS Cutting Units KM50TS™ Cutting Units Laydown Threading LSS 90° L1 F gage insert shim clamp order number catalog number mm in mm in insert screw shim screw assembly kg lbs right hand 3753570 KM50TSLSSR16 50 1.969 35 1.378 LT16ER SSA3T SMYE3 SSY3T CKC3 0,60 1.33 3753571 KM50TSLSSR22 50 1.969 35 1.378 LT22ER SSA4T SMYE4 SSY4T CKC4 0,59 1.30 3959395 KM50TSLSSR27 50 1.969 35 1.378 LT27ER SSA5T SMYE5 SSY5T CKC5 0,61 1.34 left hand 3753569 KM50TSLSSL16 50 1.969 35 1.378 LT16EL SSA3T SMYI3 SSY3T CKC3 0,60 1.31 3959394 KM50TSLSSL27 50 1.969 35 1.378 LT27EL SSA5T SMYI5 SSY5T CKC5 0,63 1.38 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. WWW.WIDIA.COM A145
