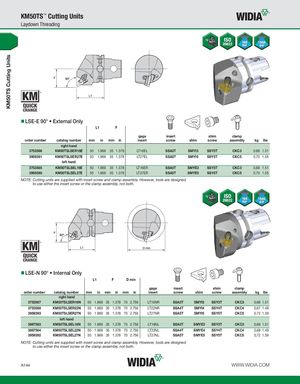

KM50TS Cutting Units KM50TS™ Cutting Units Laydown Threading LSE-E 90° • External Only L1 F gage insert shim clamp order number catalog number mm in mm in insert screw shim screw assembly kg lbs right hand 3753566 KM50TSLSER16E 50 1.969 35 1.378 LT16EL SSA3T SMYI3 SSY3T CKC3 0,68 1.51 3959391 KM50TSLSER27E 50 1.969 35 1.378 LT27EL SSA5T SMYI5 SSY5T CKC5 0,70 1.55 left hand 3753565 KM50TSLSEL16E 50 1.969 35 1.378 LT16ER SSA3T SMYE3 SSY3T CKC3 0,68 1.51 3959390 KM50TSLSEL27E 50 1.969 35 1.378 LT27ER SSA5T SMYE5 SSY5T CKC5 0,70 1.55 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. LSE-N 90° • Internal Only L1 F D min gage insert shim clamp order number catalog number mm in mm in mm in insert screw shim screw assembly kg lbs right hand 3753567 KM50TSLSER16N 50 1.969 35 1.378 70 2.756 LT16NR SSA3T SMYI3 SSY3T CKC3 0,68 1.51 3753568 KM50TSLSER22N 50 1.969 35 1.378 70 2.756 LT22NR SSA4T SMYI4 SSY4T CKC4 0,67 1.49 3959393 KM50TSLSER27N 50 1.969 35 1.378 70 2.756 LT27NR SSA5T SMYI5 SSY5T CKC5 0,72 1.59 left hand 3867563 KM50TSLSEL16N 50 1.969 35 1.378 70 2.756 LT16NL SSA3T SMYE3 SSY3T CKC3 0,69 1.51 3867564 KM50TSLSEL22N 50 1.969 35 1.378 70 2.756 LT22NL SSA4T SMYE4 SSY4T CKC4 0,68 1.49 3959392 KM50TSLSEL27N 50 1.969 35 1.378 70 2.756 LT27NL SSA5T SMYE5 SSY5T CKC5 0,72 1.59 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. A144 WWW.WIDIA.COM
