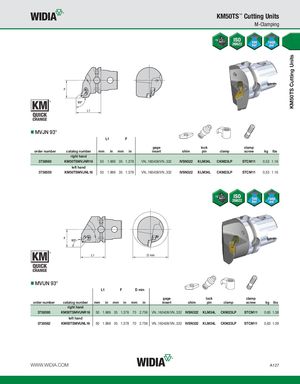

KM50TS Cutting Units KM50TS™ Cutting Units M-Clamping MVJN 93° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3738560 KM50TSMVJNR16 50 1.969 35 1.378 VN..160408/VN..332 IVSN322 KLM34L CKM23LP STCM11 0,53 1.16 left hand 3738559 KM50TSMVJNL16 50 1.969 35 1.378 VN..160408/VN..332 IVSN322 KLM34L CKM23LP STCM11 0,53 1.16 MVUN 93° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3738593 KM50TSMVUNR16 50 1.969 35 1.378 70 2.756 VN..160408/VN..332 IVSN322 KLM34L CKM23LP STCM11 0,63 1.38 left hand 3738562 KM50TSMVUNL16 50 1.969 35 1.378 70 2.756 VN..160408/VN..332 IVSN322 KLM34L CKM23LP STCM11 0,63 1.39 WWW.WIDIA.COM A127
