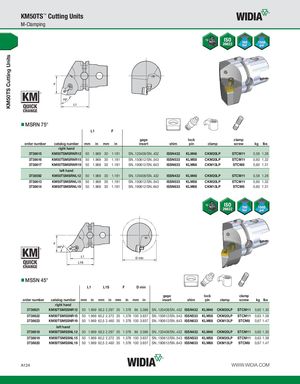

KM50TS Cutting Units KM50TS™ Cutting Units M-Clamping MSRN 75° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3738615 KM50TSMSRNR12 50 1.969 30 1.181 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,58 1.28 3738616 KM50TSMSRNR15 50 1.969 30 1.181 SN..150612/SN..543 ISSN533 KLM58 CKM20LP STCM11 0,60 1.32 3738617 KM50TSMSRNR19 50 1.969 30 1.181 SN..190612/SN..643 ISSN633 KLM68 CKM13LP STCM8 0,60 1.31 left hand 3738592 KM50TSMSRNL12 50 1.969 30 1.181 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,58 1.28 3738613 KM50TSMSRNL15 50 1.969 30 1.181 SN..150612/SN..543 ISSN533 KLM58 CKM20LP STCM11 0,60 1.32 3738614 KM50TSMSRNL19 50 1.969 30 1.181 SN..190612/SN..643 ISSN633 KLM68 CKM13LP STCM8 0,60 1.31 MSSN 45° L1 L1S F D min gage lock clamp order number catalog number mm in mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3738621 KM50TSMSSNR12 50 1.969 58,3 2.297 35 1.378 86 3.386 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,60 1.30 3738622 KM50TSMSSNR15 50 1.969 60,2 2.372 35 1.378 100 3.937 SN..150612/SN..543 ISSN533 KLM58 CKM20LP STCM11 0,63 1.38 3738623 KM50TSMSSNR19 50 1.969 62,5 2.460 35 1.378 100 3.937 SN..190612/SN..643 ISSN633 KLM68 CKM13LP STCM8 0,67 1.47 left hand 3738618 KM50TSMSSNL12 50 1.969 58,3 2.297 35 1.378 86 3.386 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,60 1.30 3738619 KM50TSMSSNL15 50 1.969 60,2 2.372 35 1.378 100 3.937 SN..150612/SN..543 ISSN533 KLM58 CKM20LP STCM11 0,63 1.38 3738620 KM50TSMSSNL19 50 1.969 62,5 2.460 35 1.378 100 3.937 SN..190612/SN..643 ISSN633 KLM68 CKM13LP STCM8 0,67 1.47 A124 WWW.WIDIA.COM
