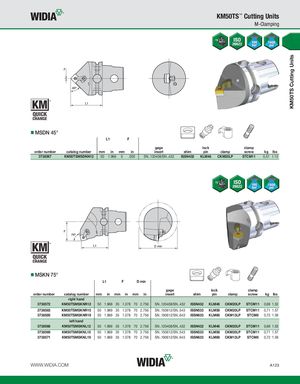

KM50TS Cutting Units KM50TS™ Cutting Units M-Clamping MSDN 45° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs 3738567 KM50TSMSDNN12 50 1.969 0 .000 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,51 1.13 MSKN 75° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3738572 KM50TSMSKNR12 50 1.969 35 1.378 70 2.756 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,69 1.52 3738583 KM50TSMSKNR15 50 1.969 35 1.378 70 2.756 SN..150612/SN..543 ISSN533 KLM58 CKM20LP STCM11 0,71 1.57 3738585 KM50TSMSKNR19 50 1.969 35 1.378 70 2.756 SN..190612/SN..643 ISSN633 KLM68 CKM13LP STCM8 0,72 1.59 left hand 3738568 KM50TSMSKNL12 50 1.969 35 1.378 70 2.756 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,69 1.53 3738569 KM50TSMSKNL15 50 1.969 35 1.378 70 2.756 SN..150612/SN..543 ISSN533 KLM58 CKM20LP STCM11 0,71 1.57 3738571 KM50TSMSKNL19 50 1.969 35 1.378 70 2.756 SN..190612/SN..643 ISSN633 KLM68 CKM13LP STCM8 0,72 1.59 WWW.WIDIA.COM A123
