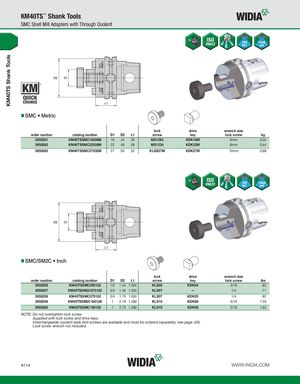

KM40TS Shank Tools KM40TS™ Shank Tools SMC Shell Mill Adapters with Through Coolant SMC • Metric lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 3950261 KM40TSSMC16026M 16 44 26 MS1294 KDK16M 6mm 0,34 3950262 KM40TSSMC22028M 22 49 28 MS1234 KDK22M 8mm 0,44 3950263 KM40TSSMC27032M 27 60 32 KLSS27M KDK27M 10mm 0,68 SMC/SM2C • Inch lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw lbs 3950256 KM40TSSMC050102 1/2 1.44 1.024 KLS05 KDK04 3/16 .63 3950257 KM40TSSM2C075102 3/4 1.46 1.024 KLS07 — 1/4 .71 3950258 KM40TSSMC075102 3/4 1.75 1.024 KLS07 KDK05 1/4 .82 3950259 KM40TSSM2C100126 1 2.19 1.260 KLS10 KDK06 5/16 1.33 3950260 KM40TSSMC100126 1 2.75 1.260 KLS10 KDK06 5/16 1.64 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. A114 WWW.WIDIA.COM
