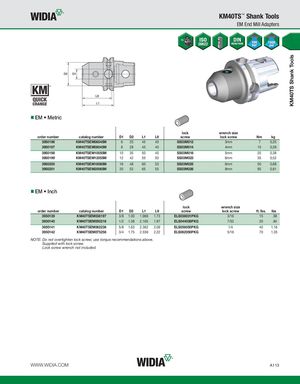

KM40TS Shank Tools KM40TS™ Shank Tools EM End Mill Adapters EM • Metric lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 3950196 KM40TSEM06045M 6 25 45 40 SS03M012 3mm 7 0,25 3950197 KM40TSEM08045M 8 28 45 40 SS03M014 4mm 15 0,28 3950198 KM40TSEM10050M 10 35 50 45 SS03M018 5mm 25 0,38 3950199 KM40TSEM12055M 12 42 55 50 SS03M023 6mm 35 0,52 3950200 KM40TSEM16060M 16 48 60 53 SS03M025 6mm 50 0,68 3950201 KM40TSEM20065M 20 52 65 55 SS03M026 8mm 95 0,81 EM • Inch lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw ft. lbs. lbs 3950139 KM40TSEM038197 3/8 1.00 1.969 1.73 ELS038031PKG 3/16 15 .58 3950140 KM40TSEM050216 1/2 1.38 2.165 1.97 ELS044038PKG 7/32 20 .84 3950141 KM40TSEM062236 5/8 1.63 2.362 2.09 ELS056050PKG 1/4 40 1.16 3950142 KM40TSEM075256 3/4 1.75 2.559 2.22 ELS062050PKG 5/16 70 1.35 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. WWW.WIDIA.COM A113
