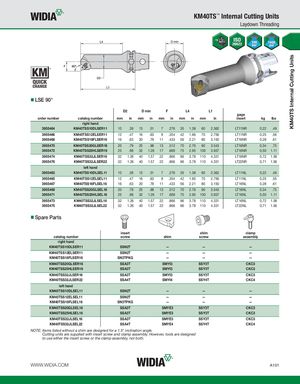

KM40TS Internal Cutting Units KM40TS™ Internal Cutting Units Laydown Threading LSE 90° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3955464 KM40TSS10DLSER11 10 .39 13 .51 7 .276 35 1.38 60 2.362 LT11NR 0,22 .49 3955466 KM40TSS12ELSER11 12 .47 16 .63 9 .354 42 1.66 70 2.756 LT11NR 0,25 .56 3955468 KM40TSS16FLSER16 16 .63 20 .79 11 .433 56 2.21 80 3.150 LT16NR 0,28 .61 3955470 KM40TSS20GLSER16 20 .79 25 .98 13 .512 70 2.76 90 3.543 LT16NR 0,34 .75 3955472 KM40TSS25HLSER16 25 .98 32 1.26 17 .669 75 2.95 100 3.937 LT16NR 0,50 1.11 3955474 KM40TSS32JLSER16 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 LT16NR 0,72 1.58 3955476 KM40TSS32JLSER22 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 LT22NR 0,71 1.56 left hand 3955463 KM40TSS10DLSEL11 10 .39 13 .51 7 .276 35 1.38 60 2.362 LT11NL 0,22 .49 3955465 KM40TSS12ELSEL11 12 .47 16 .63 9 .354 42 1.65 70 2.756 LT11NL 0,25 .55 3955467 KM40TSS16FLSEL16 16 .63 20 .79 11 .433 56 2.21 80 3.150 LT16NL 0,28 .61 3955469 KM40TSS20GLSEL16 20 .79 25 .98 13 .512 70 2.76 90 3.543 LT16NL 0,34 .75 3955471 KM40TSS25HLSEL16 25 .98 32 1.26 17 .669 75 2.95 100 3.937 LT16NL 0,50 1.11 3955473 KM40TSS32JLSEL16 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 LT16NL 0,72 1.58 3955475 KM40TSS32JLSEL22 32 1.26 40 1.57 22 .866 96 3.78 110 4.331 LT22NL 0,71 1.56 Spare Parts insert shim clamp catalog number screw shim screw assembly right hand KM40TSS10DLSER11 SSN2T — — — KM40TSS12ELSER11 SSN2T — — — KM40TSS16FLSER16 SN3TPKG — — — KM40TSS20GLSER16 SSA3T SMYI3 SSY3T CKC3 KM40TSS25HLSER16 SSA3T SMYI3 SSY3T CKC3 KM40TSS32JLSER16 SSA3T SMYI3 SSY3T CKC3 KM40TSS32JLSER22 SSA4T SMYI4 SSY4T CKC4 left hand KM40TSS10DLSEL11 SSN2T — — — KM40TSS12ELSEL11 SSN2T — — — KM40TSS16FLSEL16 SN3TPKG — — — KM40TSS20GLSEL16 SSA3T SMYE3 SSY3T CKC3 KM40TSS25HLSEL16 SSA3T SMYE3 SSY3T CKC3 KM40TSS32JLSEL16 SSA3T SMYE3 SSY3T CKC3 KM40TSS32JLSEL22 SSA4T SMYE4 SSY4T CKC4 NOTE: Items listed without a shim are designed for a 1.5° inclination angle. Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. WWW.WIDIA.COM A101
