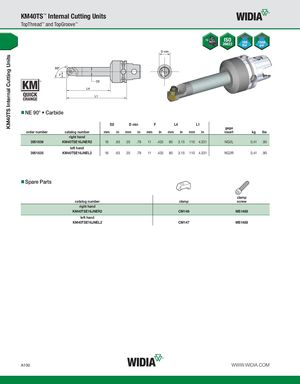

KM40TS Internal Cutting Units KM40TS™ Internal Cutting Units TopThread™ and TopGroove™ NE 90° • Carbide D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3951836 KM40TSE16JNER2 16 .63 20 .79 11 .433 80 3.15 110 4.331 NG2L 0,41 .90 left hand 3951835 KM40TSE16JNEL2 16 .63 20 .79 11 .433 80 3.15 110 4.331 NG2R 0,41 .90 Spare Parts clamp catalog number clamp screw right hand KM40TSE16JNER2 CM146 MS1488 left hand KM40TSE16JNEL2 CM147 MS1488 A100 WWW.WIDIA.COM
