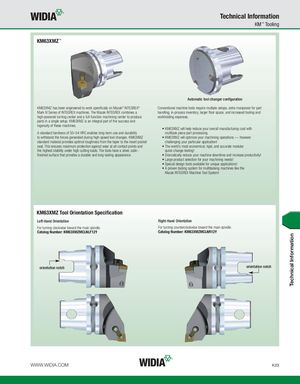

Technical Information KM™ Tooling KM63XMZ™ Automatic tool changer configuration KM63XMZ has been engineered to work specifically on Mazak® INTEGREX® Conventional machine tools require multiple setups, extra manpower for part Mark IV Series of INTEGREX machines. The Mazak INTEGREX combines a handling, in-process inventory, larger floor space, and increased tooling and high-powered turning center and a full-function machining center to produce workholding expenses. parts in a single setup. KM63XMZ is an integral part of the success and ingenuity of these machines. • KM63XMZ will help reduce your overall manufacturing cost with A standard hardness of 50–54 HRC enables long-term use and durability multitask piece part processing. to withstand the forces generated during high-speed tool changes. KM63XMZ • KM63XMZ will optimize your machining operations — however standard material provides optimal toughness from the taper to the insert pocket challenging your particular application! seat. This ensures maximum protection against wear at all contact points and • The world’s most economical, rigid, and accurate modular the highest stability under high cutting loads. The tools have a silver, satin- quick-change tooling! finished surface that provides a durable and long-lasting appearance. • Dramatically reduce your machine downtime and increase productivity! • Large product selection for your machining needs! • Special design tools available for unique applications! • A proven tooling system for multitasking machines like the Mazak INTEGREX Machine Tool System! KM63XMZ Tool Orientation Specification Left-Hand Orientation Right-Hand Orientation For turning clockwise toward the main spindle. For turning counterclockwise toward the main spindle. Catalog Number: KM63XMZMCLNLF12Y Catalog Number: KM63XMZMCLNR12Y orientation notch orientation notch WWW.WIDIA.COM K23 Technical Information
