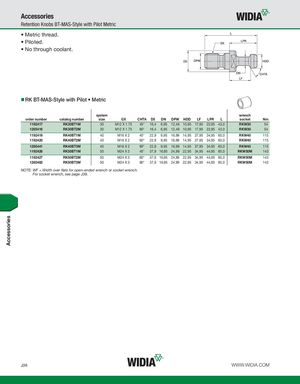

Accessories Retention Knobs BT-MAS-Style with Pilot Metric • Metric thread. • Piloted. • No through coolant. RK BT-MAS-Style with Pilot • Metric system wrench order number catalog number size GX CHTA D5 DN DPW HDD LF LPR L socket Nm 1192417 RK30BT1M 30 M12 X 1.75 45° 16,4 6,95 12,49 10,95 17,95 22,95 43,0 RKW30 54 1285416 RK30BT2M 30 M12 X 1.75 60° 16,4 6,95 12,49 10,95 17,95 22,95 43,0 RKW30 54 1192419 RK40BT1M 40 M16 X 2 45° 22,9 9,95 16,99 14,95 27,95 34,95 60,0 RKW40 115 1192420 RK40BT2M 40 M16 X 2 60° 22,9 9,95 16,99 14,95 27,95 34,95 60,0 RKW40 115 1285441 RK40BT3M 40 M16 X 2 90° 22,9 9,95 16,99 14,95 27,95 34,95 60,0 RKW40 115 1192426 RK50BT1M 50 M24 X 3 45° 37,9 16,95 24,99 22,95 34,95 44,95 85,0 RKW50M 143 1192427 RK50BT2M 50 M24 X 3 60° 37,9 16,95 24,99 22,95 34,95 44,95 85,0 RKW50M 143 1285482 RK50BT3M 50 M24 X 3 90° 37,9 16,95 24,99 22,95 34,95 44,95 85,0 RKW50M 143 NOTE: WF = Width over flats for open-ended wrench or socket wrench. For socket wrench, see page J39. J36 WWW.WIDIA.COM Accessories
