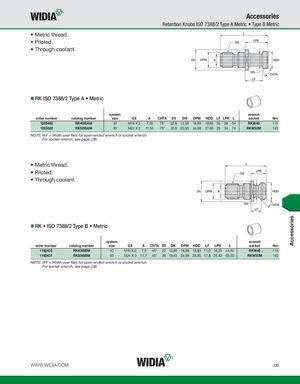

Accessories Retention Knobs ISO 7388/2 Type A Metric • Type B Metric • Metric thread. • Piloted. • Through coolant. RK ISO 7388/2 Type A • Metric system wrench order number catalog number size GX A CHTA D5 DN DPW HDD LF LPR L socket Nm 1285460 RK40ISAM 40 M16 X 2 7,05 75° 22,9 13,95 16,99 18,95 20 26 54 RKW40 115 1285502 RK50ISAM 50 M24 X 3 11,55 75° 35,9 20,95 24,99 27,95 25 34 74 RKW50M 143 NOTE: WF = Width over flats for open-ended wrench or socket wrench. For socket wrench, see page J39. • Metric thread. • Piloted. • Through coolant. RK • ISO 7388/2 Type B • Metric system wrench order number catalog number size GX A CHTA D5 DN DPW HDD LF LPR L socket Nm 1192425 RK40ISBM 40 M16 X 2 7,5 45° 22 12,80 16,99 18,80 11,0 16,25 44,50 RKW40 115 1192431 RK50ISBM 50 M24 X 3 11,7 45° 36 19,45 24,99 28,95 17,8 25,40 65,50 RKW50M 143 NOTE: WF = Width over flats for open-ended wrench or socket wrench. For socket wrench, see page J39. WWW.WIDIA.COM J35 Accessories
