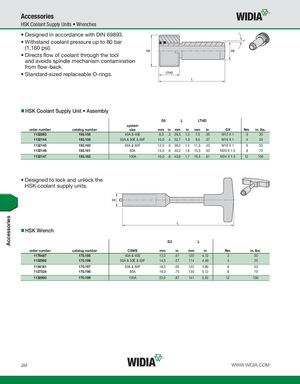

HSK Coolant Supply Units Wrenches
- Designed in accordance with DIN 69893.
- Withstand coolant pressure up to 80 bar (1,160 psi).
- Directs flow of coolant through the tool and avoids spindle mechanism contamination from flow-back.
- Standard-sized replaceable O-rings.
HSK Coolant Supply Unit Assembly
| order number | catalog number | system size | D5 mm | L in mm | in | LTH mm | D in | GX | Nm | in. lbs. |
| 1132083 | 193.158 | 40A & 40E | 8,0 | .3 29,5 | 1.2 | 7,5 | .30 | M12 X 1 | 3 | 30 |
| 1132144 | 193.159 | 50A & 50E & 63F | 10,0 | .4 32,7 | 1.3 | 9,5 | .37 | M16 X 1 | 4 | 35 |
| 1132145 | 193.160 | 63A & 80F | 12,0 | .5 36,2 | 1.4 | 11,5 | .45 | M18 X 1 | 6 | 53 |
| 1132146 | 193.161 | 80A | 14,0 | .6 40,2 | 1.6 | 13,5 | .53 | M20 X 1.5 | 8 | 70 |
| 1132147 | 193.162 | 100A | 16,0 | .6 43,6 | 1.7 | 15,5 | .61 | M24 X 1.5 | 12 | 106 |
- Designed to lock and unlock the HSK coolant supply units.
HSK Wrench
D2 L
| order number | catalog number | CSWS | mm | in | mm | in | Nm | in. lbs. |
| 1176487 | 170.195 | 40A & 40E | 13,0 | .51 | 120 | 4.72 | 3 | 30 |
| 1132992 | 170.196 | 50A & 50E & 63F | 14,5 | .57 | 114 | 4.49 | 4 | 35 |
| 1134161 | 170.197 | 63A & 80F | 16,5 | .65 | 122 | 4.80 | 6 | 53 |
| 1127524 | 170.198 | 80A | 19,0 | .75 | 130 | 5.12 | 8 | 70 |
| 1132993 | 170.199 | 100A | 22,0 | .87 | 141 | 5.55 | 12 | 106 |
