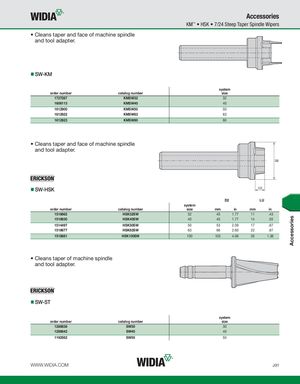

Accessories KM™ • HSK • 7/24 Steep Taper Spindle Wipers • Cleans taper and face of machine spindle and tool adapter. SW-KM system order number catalog number size 1727267 KMSW32 32 1606113 KMSW40 40 1612900 KMSW50 50 1612922 KMSW63 63 1612923 KMSW80 80 • Cleans taper and face of machine spindle and tool adapter. SW-HSK D2 LU system order number catalog number size mm in mm in 1518662 HSK32SW 32 45 1.77 11 .43 1518630 HSK40SW 40 45 1.77 14 .55 1514497 HSK50SW 50 53 2.09 17 .67 1518677 HSK63SW 63 66 2.60 22 .87 1518681 HSK100SW 100 103 4.06 35 1.38 • Cleans taper of machine spindle and tool adapter. SW-ST system order number catalog number size 1288838 SW30 30 1288842 SW40 40 1192562 SW50 50 WWW.WIDIA.COM J31 Accessories
