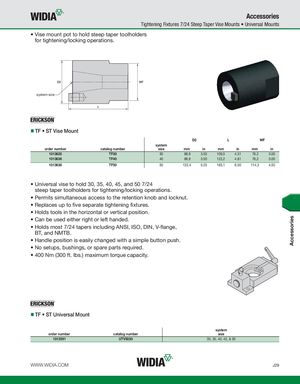

Accessories Tightening Fixtures 7/24 Steep Taper Vise Mounts • Universal Mounts • Vise mount pot to hold steep taper toolholders for tightening/locking operations. system size TF • ST Vise Mount D2 L WF system order number catalog number size mm in mm in mm in 1013620 TF30 30 88,9 3.50 109,5 4.31 76,2 3.00 1013636 TF40 40 88,9 3.50 122,2 4.81 76,2 3.00 1013638 TF50 50 133,4 5.25 165,1 6.50 114,3 4.50 • Universal vise to hold 30, 35, 40, 45, and 50 7/24 steep taper toolholders for tightening/locking operations. • Permits simultaneous access to the retention knob and locknut. • Replaces up to five separate tightening fixtures. • Holds tools in the horizontal or vertical position. • Can be used either right or left handed. • Holds most 7/24 tapers including ANSI, ISO, DIN, V-flange, BT, and NMTB. • Handle position is easily changed with a simple button push. • No setups, bushings, or spare parts required. • 400 Nm (300 ft. lbs.) maximum torque capacity. TF • ST Universal Mount system order number catalog number size 1013591 UTV5030 30, 35, 40, 45, & 50 WWW.WIDIA.COM J29 Accessories
