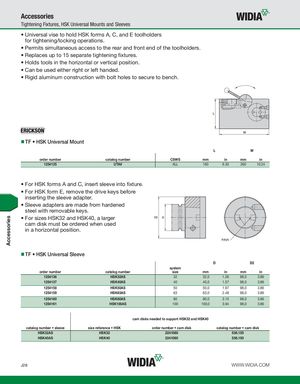

Accessories Tightening Fixtures, HSK Universal Mounts and Sleeves • Universal vise to hold HSK forms A, C, and E toolholders for tightening/locking operations. • Permits simultaneous access to the rear and front end of the toolholders. • Replaces up to 15 separate tightening fixtures. • Holds tools in the horizontal or vertical position. • Can be used either right or left handed. • Rigid aluminum construction with bolt holes to secure to bench. TF • HSK Universal Mount L W order number catalog number CSWS mm in mm in 1254135 UTAV ALL 160 6.30 260 10.24 • For HSK forms A and C, insert sleeve into fixture. • For HSK form E, remove the drive keys before inserting the sleeve adapter. • Sleeve adapters are made from hardened steel with removable keys. • For sizes HSK32 and HSK40, a larger cam disk must be ordered when used in a horizontal position. keys TF • HSK Universal Sleeve D D2 system order number catalog number size mm in mm in 1254136 HSK32AS 32 32,0 1.26 98,0 3.86 1254137 HSK40AS 40 40,0 1.57 98,0 3.86 1254158 HSK50AS 50 50,0 1.97 98,0 3.86 1254159 HSK63AS 63 63,0 2.48 98,0 3.86 1254160 HSK80AS 80 80,0 3.15 98,0 3.86 1254161 HSK100AS 100 100,0 3.94 98,0 3.86 cam disks needed to support HSK32 and HSK40 catalog number • sleeve size reference • HSK order number • cam disk catalog number • cam disk HSK32AS HSK32 2241080 536.150 HSK40AS HSK40 2241080 536.150 J28 WWW.WIDIA.COM Accessories
