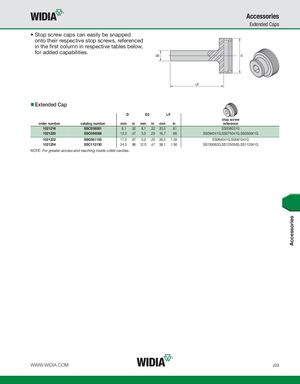

Extended Caps
- Stop screw caps can easily be snapped onto their respective stop screws, referenced in the first column in respective tables below, for added capabilities.
Extended Cap
| D | D2 | LF | |
| stop screw |
| order number | catalog number | mm | in | mm | in | mm | in | reference | |||
| 1021216 | SSC038081 | 8,1 | .32 | 8,1 | .32 | 20,5 | .81 | SS038031G | |||
| 1021220 | SSC056066 | 12,0 | .47 | 5,0 | .20 | 16,7 | .66 | SS094041G,SS075041G,SS056041G | |||
| 1021222 | SSC081103 | 17,0 | .67 | 5,0 | .20 | 26,2 | 1.03 | SS094041G,SS081041G | |||
| 1021254 | SSC112150 | 24,5 | .96 | 12,0 | .47 | 38,1 | 1.50 | SS150062G,SS125050G,SS112041G |
NOTE: For greater access and reaching inside collet cavities.
