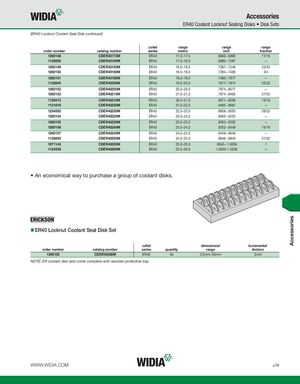

Accessories ER40 Coolant Locknut Sealing Disks • Disk Sets (ER40 Locknut Coolant Seal Disk continued) collet range range range order number catalog number series metric inch fraction 1260148 CDER40175M ER40 17,0–17,5 .6693–.6890 11/16 1128856 CDER40180M ER40 17,5–18,0 .6890–.7087 — 1260149 CDER40185M ER40 18,0–18,5 .7087–.7248 23/32 1260150 CDER40190M ER40 18,5–19,0 .7284–.7480 3/4 1260151 CDER40195M ER40 19,0–19,5 .7480–.7677 — 1128845 CDER40200M ER40 19,5–20,0 .7677–.7874 25/32 1260152 CDER40205M ER40 20,0–20,5 .7874–.8071 — 1260153 CDER40215M ER40 21,0–21,5 .7874–.8465 27/32 1129413 CDER40210M ER40 20,5–21,0 .8071–.8268 13/16 1121616 CDER40220M ER40 21,5–22,0 .8465–.8661 — 1254500 CDER40230M ER40 22,5–23,0 .8858–.9055 29/32 1260154 CDER40225M ER40 23,0–23,5 .9055–.9252 — 1260155 CDER40235M ER40 23,0–23,5 .9055–.9252 — 1260156 CDER40240M ER40 23,5–24,0 .9252–.9449 15/16 1260157 CDER40245M ER40 24,0–24,5 .9449–.9646 — 1128850 CDER40250M ER40 24,5–25,0 .9646–.9843 31/32 1971143 CDER40255M ER40 25,0–25,5 .9843–.1.0039 1 1124539 CDER40260M ER40 25,5–26,0 1.0039–1.0236 — • An economical way to purchase a group of coolant disks. ER40 Locknut Coolant Seal Disk Set collet dimensional incremental order number catalog number series quantity range division 1260130 CDER40000M ER40 46 3,5mm–26mm .5mm NOTE: ER coolant disk sets come complete with wooden protective tray. WWW.WIDIA.COM J19 Accessories
