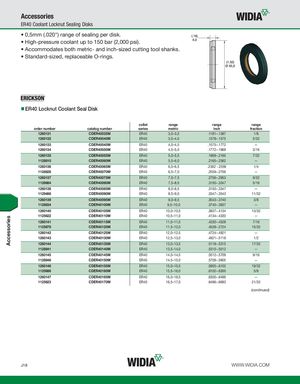

Accessories ER40 Coolant Locknut Sealing Disks • 0,5mm (.020") range of sealing per disk. • High-pressure coolant up to 150 bar (2,000 psi). • Accommodates both metric- and inch-sized cutting tool shanks. • Standard-sized, replaceable O-rings. ER40 Locknut Coolant Seal Disk collet range range range order number catalog number series metric inch fraction 1260131 CDER40035M ER40 3,0–3,5 .1181–.1387 1/8 1260132 CDER40040M ER40 3,5–4,0 .1378–.1575 5/32 1260133 CDER40045M ER40 4,0–4,5 .1575–.1772 — 1260134 CDER40050M ER40 4,5–5,0 .1772–.1969 3/16 1260135 CDER40055M ER40 5,0–5,5 .1969–.2165 7/32 1128810 CDER40060M ER40 5,5–6,0 .2165–.2362 — 1260136 CDER40065M ER40 6,0–6,5 .2362 -.2559 1/4 1128828 CDER40070M ER40 6,5–7,0 .2559–.2756 — 1260137 CDER40075M ER40 7,0–7,5 .2756–.2953 9/32 1126684 CDER40080M ER40 7,5–8,0 .3150–.3347 5/16 1260138 CDER40085M ER40 8,0–8,5 .3150–.3347 — 1129486 CDER40090M ER40 8,5–9,0 .3347–.3543 11/32 1260139 CDER40095M ER40 9,0–9,5 .3543–.3740 3/8 1128834 CDER40100M ER40 9,5–10,0 .3740–.3937 — 1260140 CDER40105M ER40 10,0–10,5 .3937–.4134 13/32 1125622 CDER40110M ER40 10,5–11,0 .4134–.4330 — 1260141 CDER40115M ER40 11,0–11,5 .4330–.4528 7/16 1125678 CDER40120M ER40 11,5–12,0 .4528–.2724 15/32 1260142 CDER40125M ER40 12,0–12,5 .4724–.4921 — 1260143 CDER40130M ER40 12,5–13,0 .4921–.5118 1/2 1260144 CDER40135M ER40 13,0–13,5 .5118–.5315 17/32 1128841 CDER40140M ER40 13,5–14,0 .5315–.5512 — 1260145 CDER40145M ER40 14,0–14,5 .5512–.5709 9/16 1128848 CDER40150M ER40 14,5–15,0 .5709–.5905 — 1260146 CDER40155M ER40 15,0–15,5 .5905–.6102 19/32 1125686 CDER40160M ER40 15,5–16,0 .6102–.6300 5/8 1260147 CDER40165M ER40 16,0–16,5 .6300–.6496 — 1125623 CDER40170M ER40 16,5–17,0 .6496–.6693 21/32 (continued) J18 WWW.WIDIA.COM Accessories
