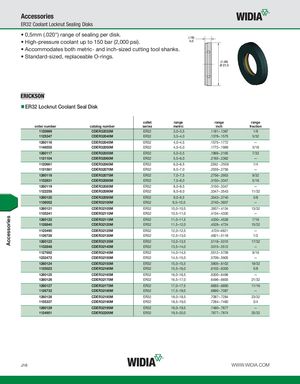

Accessories ER32 Coolant Locknut Sealing Disks • 0,5mm (.020") range of sealing per disk. • High-pressure coolant up to 150 bar (2,000 psi). • Accommodates both metric- and inch-sized cutting tool shanks. • Standard-sized, replaceable O-rings. ER32 Locknut Coolant Seal Disk collet range range range order number catalog number series metric inch fraction 1120969 CDER32035M ER32 3,0–3,5 .1181–.1387 1/8 1125347 CDER32040M ER32 3,5–4,0 .1378–.1575 5/32 1260116 CDER32045M ER32 4,0–4,5 .1575–.1772 — 1148555 CDER32050M ER32 4,5–5,0 .1772–.1969 3/16 1260117 CDER32055M ER32 5,0–5,5 .1969–.2165 7/32 1121104 CDER32060M ER32 5,5–6,0 .2165–.2362 — 1120661 CDER32065M ER32 6,0–6,5 .2362 -.2559 1/4 1131561 CDER32070M ER32 6,5–7,0 .2559–.2756 — 1260118 CDER32075M ER32 7,0–7,5 .2756–.2953 9/32 1132831 CDER32080M ER32 7,5–8,0 .3150–.3347 5/16 1260119 CDER32085M ER32 8,0–8,5 .3150–.3347 — 1122258 CDER32090M ER32 8,5–9,0 .3347–.3543 11/32 1260120 CDER32095M ER32 9,0–9,5 .3543–.3740 3/8 1136052 CDER32100M ER32 9,5–10,0 .3740–.3937 — 1260121 CDER32105M ER32 10,0–10,5 .3937–.4134 13/32 1135241 CDER32110M ER32 10,5–11,0 .4134–.4330 — 1260122 CDER32115M ER32 11,0–11,5 .4330–.4528 7/16 1128840 CDER32120M ER32 11,5–12,0 .4528–.4724 15/32 1125490 CDER32125M ER32 12,0–12,5 .4724–4921 — 1126728 CDER32130M ER32 12,5–13,0 .4921–.5118 1/2 1260123 CDER32135M ER32 13,0–13,5 .5118–.5315 17/32 1132848 CDER32140M ER32 13,5–14,0 .5315–.5512 — 1127692 CDER32145M ER32 14,0–14,5 .5512–.5709 9/16 1232472 CDER32150M ER32 14,5–15,0 .5709–.5905 — 1260124 CDER32155M ER32 15,0–15,5 .5905–.6102 19/32 1125023 CDER32160M ER32 15,5–16,0 .6102–.6300 5/8 1260125 CDER32165M ER32 16,0–16,5 .6300–.6496 — 1260126 CDER32170M ER32 16,5–17,0 .6496–.6693 21/32 1260127 CDER32175M ER32 17,0–17,5 .6693–.6890 11/16 1126732 CDER32180M ER32 17,5–18,0 .6890–.7087 — 1260128 CDER32185M ER32 18,0–18,5 .7087–.7284 23/32 1155337 CDER32190M ER32 18,5–19,0 .7284–.7480 3/4 1260129 CDER32195M ER32 19,0–19,5 .7480–.7677 — 1124951 CDER32200M ER32 19,5–20,0 .7677–.7874 25/32 J16 WWW.WIDIA.COM Accessories
