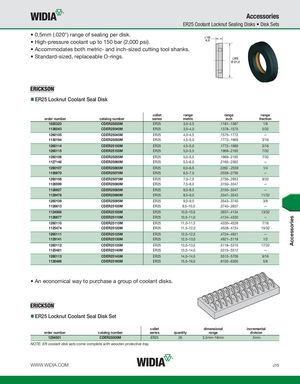

Accessories ER25 Coolant Locknut Sealing Disks • Disk Sets • 0,5mm (.020") range of sealing per disk. • High-pressure coolant up to 150 bar (2,000 psi). • Accommodates both metric- and inch-sized cutting tool shanks. • Standard-sized, replaceable O-rings. ER25 Locknut Coolant Seal Disk collet range range range order number catalog number series metric inch fraction 1820323 CDER25035M ER25 3,0–3,5 .1181–.1387 1/8 1136043 CDER25040M ER25 3,5–4,0 .1378–.1575 5/32 1260105 CDER25045M ER25 4,0–4,5 .1575–.1772 — 1130194 CDER25050M ER25 4,5–5,0 .1772–.1969 3/16 1260114 CDER25150M ER25 4,5–5,0 .1772–.1969 3/16 1260115 CDER25155M ER25 5,0–5,5 .1969–.2165 7/32 1260106 CDER25055M ER25 5,0–5,5 .1969–.2165 7/32 1127146 CDER25060M ER25 5,5–6,0 .2165–.2362 — 1260107 CDER25065M ER25 6,0–6,5 .2263 -.2559 1/4 1126670 CDER25070M ER25 6,5–7,0 .2559–.2756 — 1260108 CDER25075M ER25 7,0–7,5 .2756–.2953 9/32 1126599 CDER25080M ER25 7,5–8,0 .3150–.3347 — 1126607 CDER25085M ER25 8,0–8,5 .3150–.3347 — 1129478 CDER25090M ER25 8,5–9,0 .3347–.3543 11/32 1260109 CDER25095M ER25 9,0–9,5 .3543–.3740 3/8 1126613 CDER25100M ER25 9,5–10,0 .3740–.3937 — 1124966 CDER25105M ER25 10,0–10,5 .3937–.4134 13/32 1126677 CDER25110M ER25 10,5–11,0 .4134–.4330 — 1260110 CDER25115M ER25 11,0–11,5 .4330–.4528 7/16 1125474 CDER25120M ER25 11,5–12,0 .4528–.4724 15/32 1260111 CDER25125M ER25 12,0–12,5 .4724–.4921 — 1129141 CDER25130M ER25 12,5–13,0 .4921–.5118 1/2 1260112 CDER25135M ER25 13,0–13,5 .5118–.5315 17/32 1125481 CDER25140M ER25 13,5–14,0 .5315–.5512 — 1260113 CDER25145M ER25 14,0–14,5 .5512–.5709 9/16 1128486 CDER25160M ER25 15,5–16,0 .6102–.6300 5/8 • An economical way to purchase a group of coolant disks. ER25 Locknut Coolant Seal Disk Set collet dimensional incremental order number catalog number series quantity range division 1254501 CDER25000M ER25 26 3,5mm–16mm .5mm NOTE: ER coolant disk sets come complete with wooden protective tray. WWW.WIDIA.COM J15 Accessories
