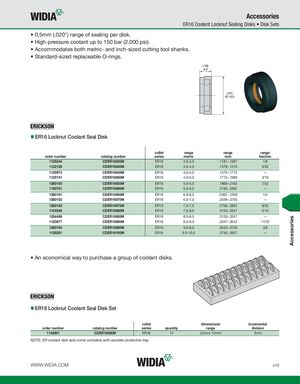

Accessories ER16 Coolant Locknut Sealing Disks • Disk Sets • 0,5mm (.020") range of sealing per disk. • High-pressure coolant up to 150 bar (2,000 psi). • Accommodates both metric- and inch-sized cutting tool shanks. • Standard-sized replaceable O-rings. ER16 Locknut Coolant Seal Disk collet range range range order number catalog number series metric inch fraction 1128244 CDER16035M ER16 3,0–3,5 .1181–.1387 1/8 1122128 CDER16040M ER16 3,5–4,0 .1378–.1575 5/32 1125973 CDER16045M ER16 4,0–4,5 .1575–.1772 — 1125741 CDER16050M ER16 4,5–5,0 .1772–.1969 3/16 1260100 CDER16055M ER16 5,0–5,5 .1969–.2165 7/32 1130781 CDER16060M ER16 5,5–6,0 .2165–.2362 — 1260101 CDER16065M ER16 6,0–6,5 .2362 -.2559 1/4 1260102 CDER16070M ER16 6,5–7,0 .2559–.2756 — 1260103 CDER16075M ER16 7,0–7,5 .2756–.2953 9/32 1124948 CDER16080M ER16 7,5–8,0 .3150–.3347 5/16 1254499 CDER16085M ER16 8,0–8,5 .3150–.3347 — 1120977 CDER16090M ER16 8,5–9,0 .3347–.3543 11/32 1260104 CDER16095M ER16 9,0–9,5 .3543–.3740 3/8 1128201 CDER16100M ER16 9,5–10,0 .3740–.3937 — • An economical way to purchase a group of coolant disks. ER16 Locknut Coolant Seal Disk Set collet dimensional incremental order number catalog number series quantity range division 1148501 CDER16000M ER16 14 3,5mm–10mm .5mm NOTE: ER coolant disk sets come complete with wooden protective tray. WWW.WIDIA.COM J13 Accessories
