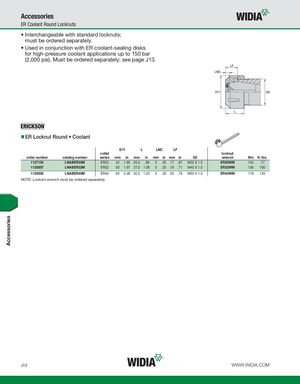

ER Coolant Round Locknuts
- Interchangeable with standard locknuts; must be ordered separately.
- Used in conjunction with ER coolant-sealing disks for high-pressure coolant applications up to 150 bar (2,000 psi). Must be ordered separately; see page J13.
ER Locknut Round Coolant
| order number | catalog number | collet series | mm D1 | in 1 | mm L | in | mm L | N | in C | mm L | in F | G3 | locknut wrench | Nm | ft. lbs. |
| 1127154 | LNABER25M | ER25 | 42 | 1.65 | 25,0 | .98 | 5 | .20 | 17 | .67 | M32 X 1.5 | ER25WM | 104 | 77 | |
| 1128857 | LNABER32M | ER32 | 50 | 1.97 | 27,5 | 1.08 | 5 | .20 | 18 | .71 | M40 X 1.5 | ER32WM | 136 | 100 | |
| 1125692 | LNABER40M | ER40 | 63 | 2.48 | 30,5 | 1.20 | 5 | .20 | 20 | .79 | M50 X 1.5 | ER40WM | 176 | 130 |
NOTE: Locknut wrench must be ordered separately.
