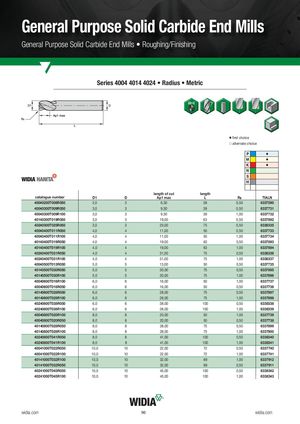

General Purpose Solid Carbide End Mills
General Purpose Solid Carbide End Mills • Roughing/Finishing
Series 4004 4014 4024 • Radius • Metric
first choice v alternate choice j P v M v K v N S H length of cut length
| catalogue number | D1 | D | Ap1 max | L | Re | TIALN |
| 40040200T006R050 | 2,0 | 3 | 6,30 | 38 | 0,50 | 6337590 |
| 40040300T009R050 | 3,0 | 3 | 9,50 | 38 | 0,50 | 6337731 |
| 40040300T009R100 | 3,0 | 3 | 9,50 | 38 | 1,00 | 6337732 |
| 40140300T019R050 | 3,0 | 3 | 19,00 | 63 | 0,50 | 6337892 |
| 40240300T025R050 | 3,0 | 3 | 25,00 | 75 | 0,50 | 6338335 |
| 40040400T011R050 | 4,0 | 4 | 11,00 | 50 | 0,50 | 6337733 |
| 40040400T011R100 | 4,0 | 4 | 11,00 | 50 | 1,00 | 6337734 |
| 40140400T019R050 | 4,0 | 4 | 19,00 | 63 | 0,50 | 6337893 |
| 40140400T019R100 | 4,0 | 4 | 19,00 | 63 | 1,00 | 6337894 |
| 40240400T031R050 | 4,0 | 4 | 31,00 | 75 | 0,50 | 6338336 |
| 40240400T031R100 | 4,0 | 4 | 31,00 | 75 | 1,00 | 6338337 |
| 40040500T013R050 | 5,0 | 5 | 13,00 | 50 | 0,50 | 6337735 |
| 40140500T030R050 | 5,0 | 5 | 30,00 | 75 | 0,50 | 6337895 |
| 40140500T030R100 | 5,0 | 5 | 30,00 | 75 | 1,00 | 6337896 |
| 40040600T016R100 | 6,0 | 6 | 16,00 | 50 | 1,00 | 6337737 |
| 40040600T016R050 | 6,0 | 6 | 16,00 | 50 | 0,50 | 6337736 |
| 40140600T028R050 | 6,0 | 6 | 28,00 | 75 | 0,50 | 6337897 |
| 40140600T028R100 | 6,0 | 6 | 28,00 | 75 | 1,00 | 6337898 |
| 40240600T038R050 | 6,0 | 6 | 38,00 | 100 | 0,50 | 6338338 |
| 40240600T038R100 | 6,0 | 6 | 38,00 | 100 | 1,00 | 6338339 |
| 40040800T020R100 | 8,0 | 8 | 20,00 | 50 | 1,00 | 6337739 |
| 40040800T020R050 | 8,0 | 8 | 20,00 | 50 | 0,50 | 6337738 |
| 40140800T028R050 | 8,0 | 8 | 28,00 | 75 | 0,50 | 6337899 |
| 40140800T028R100 | 8,0 | 8 | 28,00 | 75 | 1,00 | 6337900 |
| 40240800T041R050 | 8,0 | 8 | 41,00 | 100 | 0,50 | 6338340 |
| 40240800T041R100 | 8,0 | 8 | 41,00 | 100 | 1,00 | 6338341 |
| 40041000T022R050 | 10,0 | 10 | 22,00 | 72 | 0,50 | 6337740 |
| 40041000T022R100 | 10,0 | 10 | 22,00 | 72 | 1,00 | 6337741 |
| 40141000T032R100 | 10,0 | 10 | 32,00 | 89 | 1,00 | 6337912 |
| 40141000T032R050 | 10,0 | 10 | 32,00 | 89 | 0,50 | 6337911 |
| 40241000T045R050 | 10,0 | 10 | 45,00 | 100 | 0,50 | 6338342 |
| 40241000T045R100 | 10,0 | 10 | 45,00 | 100 | 1,00 | 6338343 |
