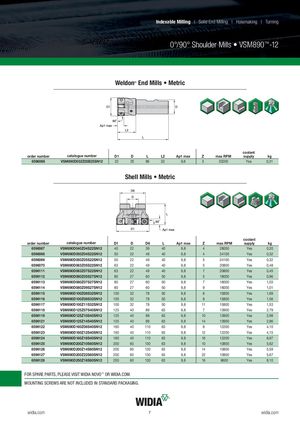

0°/90° Shoulder Mills • VSM890™-12
Weldon End Mills • Metric
coolant
| order number | catalogue number | D1 | D | L | L2 | Ap1 max | Z | max RPM | supply | kg | |||
| 6596066 | VSM890D032Z03B25SN12 | 32 | 25 | 89 | 32 | 9,8 | 3 | 33200 | Yes | 0,31 |
Shell Mills • Metric
coolant
| order number | catalogue number D1 | D | D6 | L | Ap1 max | Z | max RPM | supply | kg | |
| 6596067 | VSM890D040Z04S22SN12 | 40 | 22 | 39 | 40 | 9,8 | 4 | 28000 | Yes | 0,20 |
| 6596068 | VSM890D050Z04S22SN12 | 50 | 22 | 49 | 40 | 9,8 | 4 | 24100 | Yes | 0,32 |
| 6596069 | VSM890D050Z05S22SN12 | 50 | 22 | 49 | 40 | 9,8 | 5 | 24100 | Yes | 0,32 |
| 6596070 | VSM890D063Z05S22SN12 | 63 | 22 | 49 | 40 | 9,8 | 5 | 20800 | Yes | 0,48 |
| 6596111 | VSM890D063Z07S22SN12 | 63 | 22 | 49 | 40 | 9,8 | 7 | 20800 | Yes | 0,45 |
| 6596112 | VSM890D080Z05S27SN12 | 80 | 27 | 60 | 50 | 9,8 | 5 | 18000 | Yes | 0,96 |
| 6596113 | VSM890D080Z07S27SN12 | 80 | 27 | 60 | 50 | 9,8 | 7 | 18000 | Yes | 1,03 |
| 6596114 | VSM890D080Z09S27SN12 | 80 | 27 | 60 | 50 | 9,8 | 9 | 18000 | Yes | 1,01 |
| 6596115 | VSM890D100Z06S32SN12 | 100 | 32 | 78 | 50 | 9,8 | 6 | 15800 | Yes | 1,69 |
| 6596116 | VSM890D100Z08S32SN12 | 100 | 32 | 78 | 50 | 9,8 | 8 | 15800 | Yes | 1,56 |
| 6596117 | VSM890D100Z11S32SN12 | 100 | 32 | 78 | 50 | 9,8 | 11 | 15800 | Yes | 1,53 |
| 6596118 | VSM890D125Z07S40SN12 | 125 | 40 | 89 | 63 | 9,8 | 7 | 13900 | Yes | 2,79 |
| 6596119 | VSM890D125Z10S40SN12 | 125 | 40 | 89 | 63 | 9,8 | 10 | 13900 | Yes | 2,98 |
| 6596121 | VSM890D125Z14S40SN12 | 125 | 40 | 89 | 63 | 9,8 | 14 | 13900 | Yes | 2,86 |
| 6596122 | VSM890D160Z08S40SN12 | 160 | 40 | 110 | 63 | 9,8 | 8 | 12200 | Yes | 4,10 |
| 6596123 | VSM890D160Z12S40SN12 | 160 | 40 | 110 | 63 | 9,8 | 12 | 12200 | Yes | 4,15 |
| 6596124 | VSM890D160Z16S40SN12 | 160 | 40 | 110 | 63 | 9,8 | 16 | 12200 | Yes | 8,97 |
| 6596125 | VSM890D200Z10S60SN12 | 200 | 60 | 130 | 63 | 9,8 | 10 | 10800 | Yes | 5,62 |
| 6596126 | VSM890D200Z14S60SN12 | 200 | 60 | 130 | 63 | 9,8 | 14 | 10800 | Yes | 5,59 |
| 6596127 | VSM890D200Z22S60SN12 | 200 | 60 | 130 | 63 | 9,8 | 22 | 10800 | Yes | 5,67 |
| 6596128 | VSM890D250Z16S60SN12 | 250 | 60 | 130 | 63 | 9,8 | 16 | 9600 | Yes | 8,10 |
FOR SPARE PARTS, PLEASE VISIT WIDIA NOVO™ OR WIDIA.COM. MOUNTING SCREWS ARE NOT INCLUDED IN STANDARD PACKAGING.
