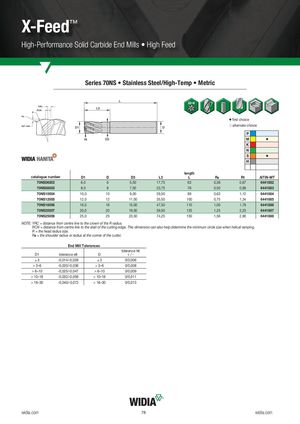

X-Feed™
High-Performance Solid Carbide End Mills • High Feed
Series 70NS • Stainless Steel/High-Temp • Metric
first choice v alternate choice j P M v K N S v H length
| catalogue number | D1 | D | D3 | L3 | L | Re | Rt | AlTiN-MT |
| 70NS06002 | 6,0 | 6 | 5,50 | 17,75 | 63 | 0,38 | 0,67 | 6441882 |
| 70NS08003 | 8,0 | 8 | 7,50 | 23,75 | 76 | 0,50 | 0,89 | 6441883 |
| 70NS10004 | 10,0 | 10 | 9,00 | 29,50 | 89 | 0,63 | 1,12 | 6441884 |
| 70NS12005 | 12,0 | 12 | 11,00 | 35,50 | 100 | 0,75 | 1,34 | 6441885 |
| 70NS16006 | 16,0 | 16 | 15,00 | 47,50 | 110 | 1,00 | 1,79 | 6441886 |
| 70NS20007 | 20,0 | 20 | 19,00 | 59,50 | 125 | 1,25 | 2,23 | 6441887 |
| 70NS25008 | 25,0 | 25 | 23,50 | 74,25 | 150 | 1,56 | 2,90 | 6441888 |
NOTE: YRC = distance from centre line to the crown of the R radius. RCN = distance from centre line to the start of the cutting edge. This dimension can also help determine the minimum circle size when helical ramping. R = the head radius size. Re = the shoulder radius or radius at the corner of the cutter. End Mill Tolerances tolerance h6
| D1 | tolerance e8 | D | + / - | |
| ≤ 3 | -0,014/-0,028 | ≤ 3 | 0/0,006 | |
| > 3–6 | -0,020/-0,038 | > 3–6 | 0/0,008 | |
| > 6–10 | -0,025/-0,047 | > 6–10 | 0/0,009 | |
| > 10–18 | -0,032/-0,059 | > 10–18 | 0/0,011 | |
| > 18–30 | -0,040/-0,073 | > 18–30 | 0/0,013 |
