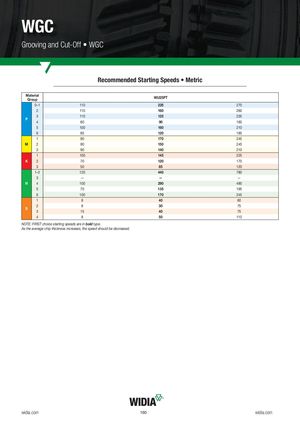

Grooving and Cut-Off • WGC
Recommended Starting Speeds • Metric
Material WU25PT Group
| 0–1 | 110 | 225 | 270 |
| 2 | 110 | 160 | 260 |
| 3 | 110 | 125 | 235 |
P
| 4 | 60 | 90 | 160 |
| 5 | 100 | 160 | 210 |
| 6 | 85 | 120 | 185 |
| 1 | 90 | 170 | 245 |
| M 2 | 90 | 150 | 245 |
| 3 | 90 | 140 | 210 |
| 1 | 100 | 145 | 225 |
| K 2 | 70 | 120 | 170 |
| 3 | 50 | 85 | 120 |
| 1–2 | 120 | 440 | 780 |
| 3 | — | — | — |
| N 4 | 100 | 290 | 490 |
| 5 | 70 | 135 | 195 |
| 6 | 100 | 170 | 245 |
| 1 | 8 | 40 | 60 |
| 2 | 8 | 30 | 75 |
S
| 3 | 15 | 40 | 75 |
| 4 | 8 | 50 | 110 |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
