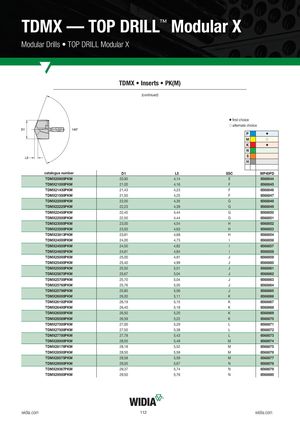

Modular Drills • TOP DRILL Modular X
TDMX • Inserts • PK(M)
(continued)
| vfirst | i choice | ||||
| jalter | nate choi | ce | |||
| P | v | ||||
| M | j | ||||
| K N | v | ||||
| S H | |||||
| catalogue number | D1 | L5 | SSC | WP40PD | |
| TDMX20900PKM | 20,90 | 4,14 | E | 6568844 | |
| TDMX21000PKM | 21,00 | 4,16 | F | 6568845 | |
| TDMX21430PKM | 21,43 | 4,23 | F | 6568846 | |
| TDMX21500PKM | 21,50 | 4,25 | F | 6568847 | |
| TDMX22000PKM | 22,00 | 4,35 | G | 6568848 | |
| TDMX22225PKM | 22,23 | 4,39 | G | 6568849 | |
| TDMX22450PKM | 22,45 | 4,44 | G | 6568850 | |
| TDMX22500PKM | 22,50 | 4,44 | G | 6568851 | |
| TDMX23000PKM | 23,00 | 4,54 | H | 6568852 | |
| TDMX23500PKM | 23,50 | 4,63 | H | 6568853 | |
| TDMX23813PKM | 23,81 | 4,68 | H | 6568854 | |
| TDMX24000PKM | 24,00 | 4,73 | I | 6568856 | |
| TDMX24500PKM | 24,50 | 4,82 | I | 6568857 | |
| TDMX24605PKM | 24,61 | 4,84 | I | 6568858 | |
| TDMX25000PKM | 25,00 | 4,91 | J | 6568859 | |
| TDMX25400PKM | 25,40 | 4,99 | J | 6568860 | |
| TDMX25500PKM | 25,50 | 5,01 | J | 6568861 | |
| TDMX25670PKM | 25,67 | 5,04 | J | 6568862 | |
| TDMX25700PKM | 25,70 | 5,04 | J | 6568863 | |
| TDMX25760PKM | 25,76 | 5,05 | J | 6568864 | |
| TDMX25796PKM | 25,80 | 5,06 | J | 6568865 | |
| TDMX26000PKM | 26,00 | 5,11 | K | 6568866 | |
| TDMX26192PKM | 26,19 | 5,15 | K | 6568867 | |
| TDMX26400PKM | 26,40 | 5,18 | K | 6568868 | |
| TDMX26500PKM | 26,50 | 5,20 | K | 6568869 | |
| TDMX26589PKM | 26,59 | 5,22 | K | 6568870 | |
| TDMX27000PKM | 27,00 | 5,29 | L | 6568871 | |
| TDMX27500PKM | 27,50 | 5,38 | L | 6568872 | |
| TDMX27780PKM | 27,78 | 5,43 | L | 6568873 | |
| TDMX28000PKM | 28,00 | 5,49 | M | 6568874 | |
| TDMX28176PKM | 28,18 | 5,52 | M | 6568875 | |
| TDMX28500PKM | 28,50 | 5,58 | M | 6568876 | |
| TDMX28575PKM | 28,58 | 5,59 | M | 6568877 | |
| TDMX29000PKM | 29,00 | 5,67 | N | 6568878 | |
| TDMX29367PKM | 29,37 | 5,74 | N | 6568879 | |
| TDMX29500PKM | 29,50 | 5,76 | N | 6568880 |
